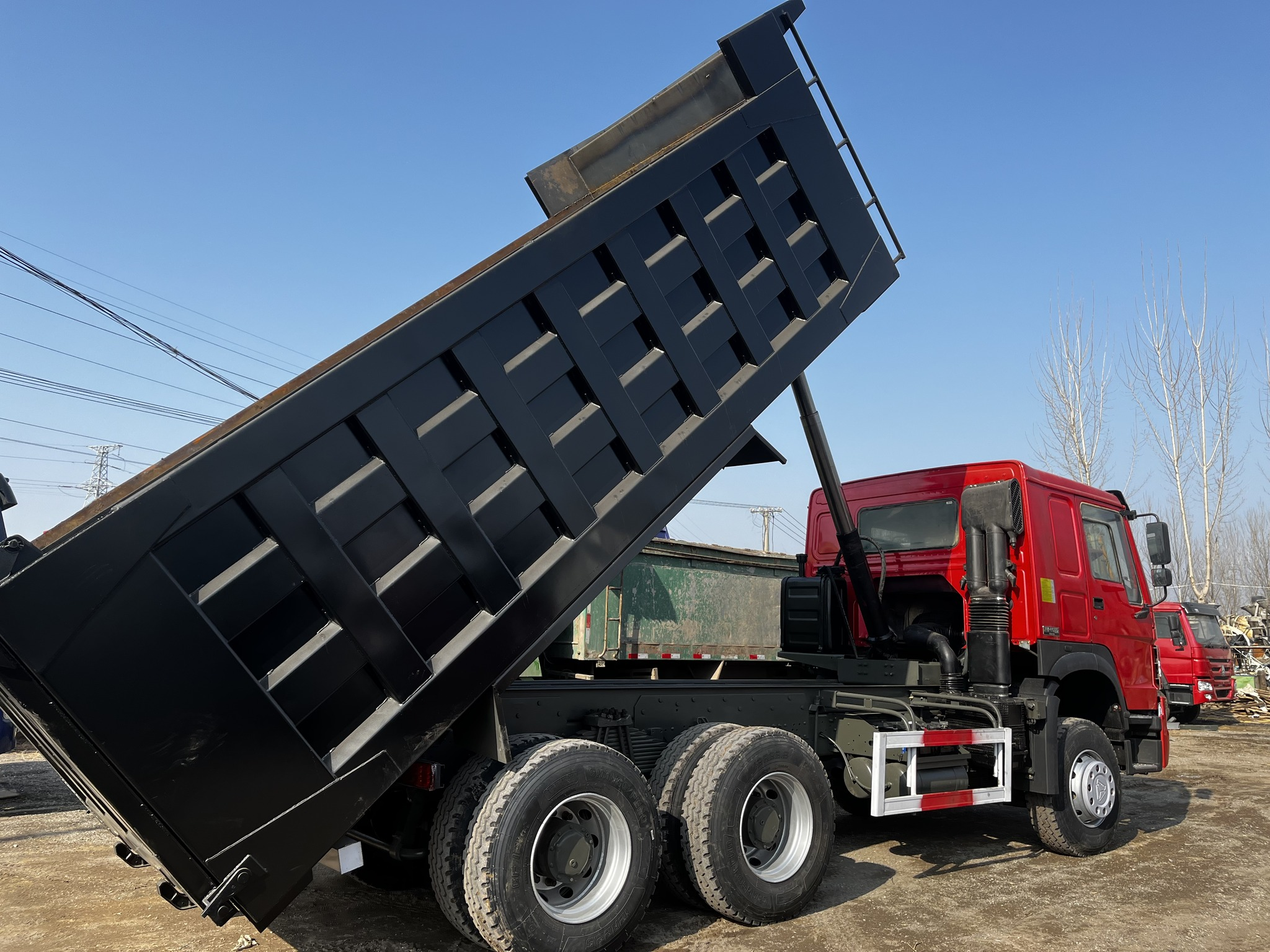

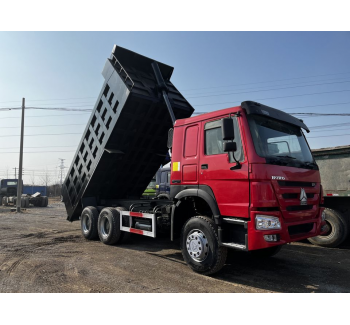

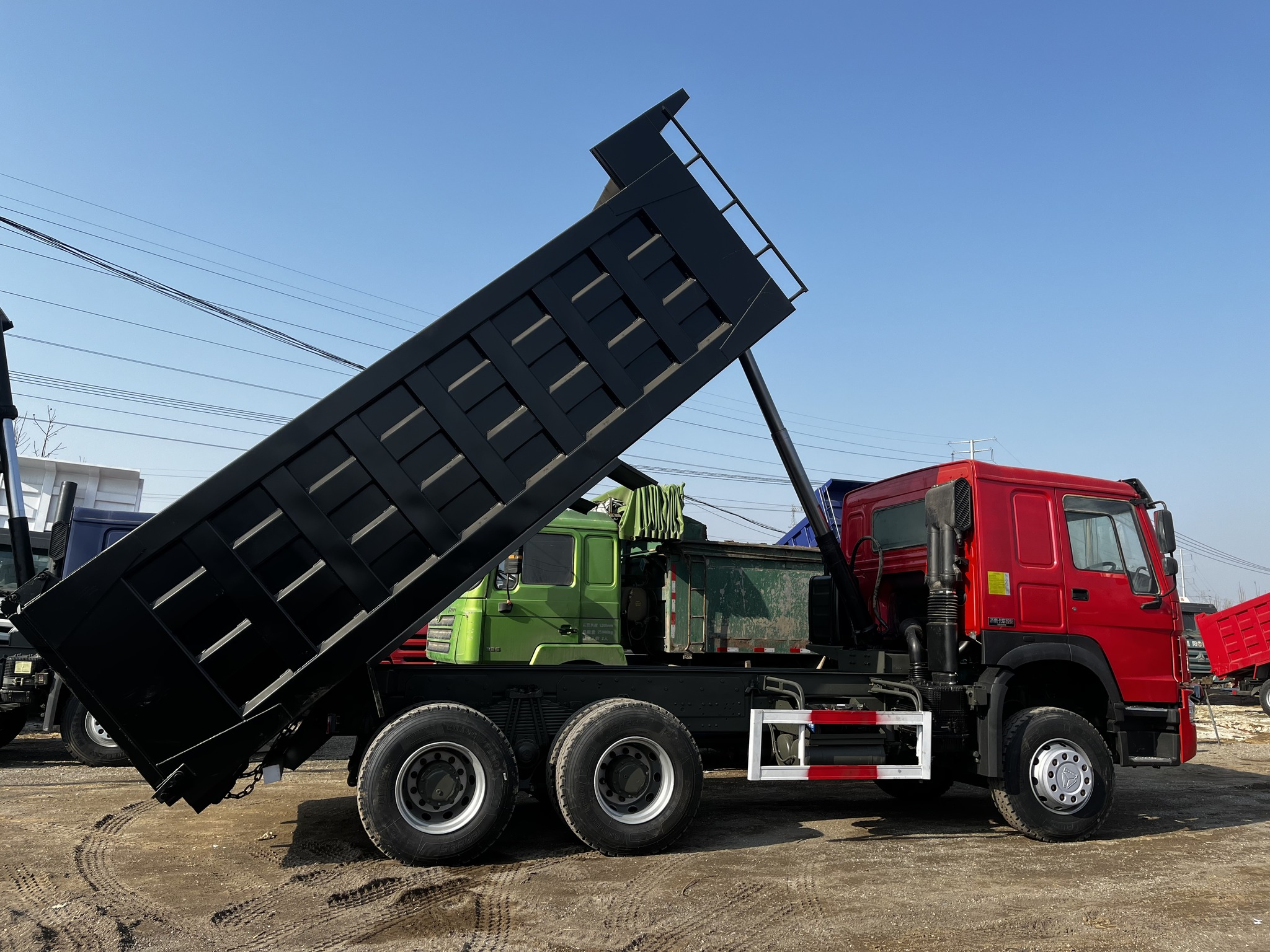

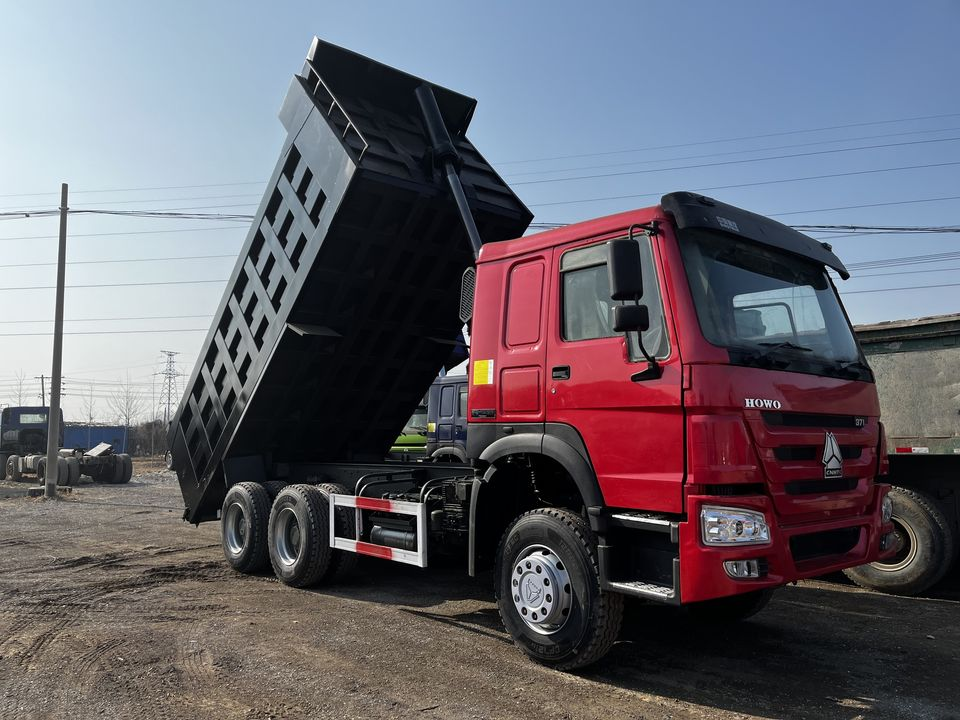

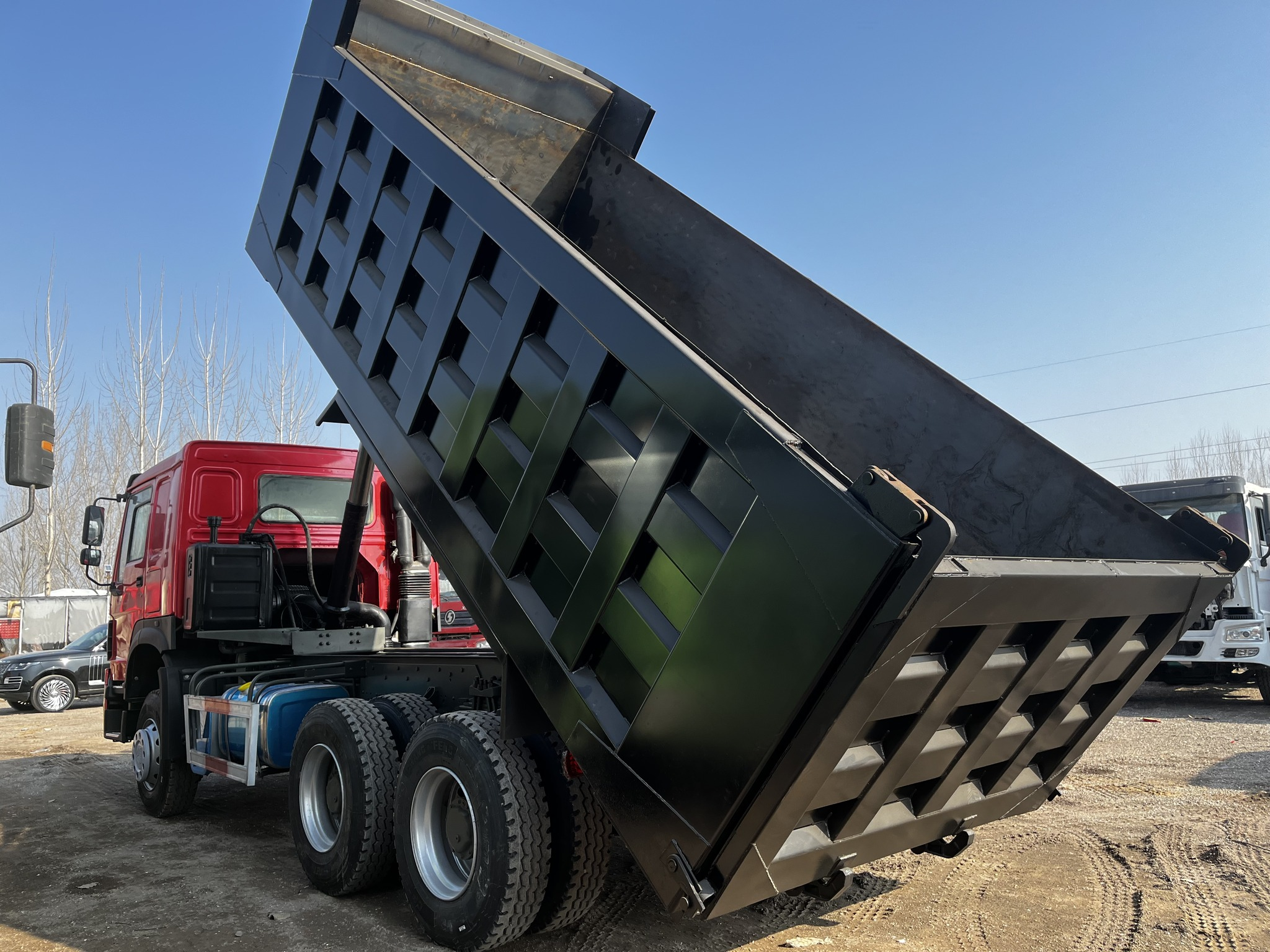

Truck ModelCVZZ3257N3647A (LHD)
Truck BrandSINOTRUK –HOWO
Dimension(Lx W xH)(unloaded)8214x2496x3386
Cargo body size (L*W*H, mm)5400x2300x1400
Cargo body thickness(mm)bottom:8mm, side:6mm,
Lift type of CarriageVentral lifting
Approaching angle/Departure angle(°)19/26
Overhang(front/rear) (mm)1500/1739
Wheel base (mm)3625+1350
Max speed(km/h)75
Curb weight(kg)12290
Loading Weight(kg)30000
Fuel tanker capacity300L with locking fuel cap
Fuel consumption(L/100km)32
ClutchSingle-plate dry clutch Φ420mm

Engine Model

( technology, made in China)

ModelWD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling
Horse Power, max(kw/rpm)371HP,247/2200
Emission StandardEURO II
TransmissionModelHW 19710,10 forwards and 2 reverse

Brake system



Service brakeDual circuit compressed air brake
Parking brake

spring energy, compressed air operating on rear wheels



Auxiliary brake

Engine exhaust brake



Steering system



ModelZF8098 hydraulic steering with power assistance
Front axle

HF9 , Steering with double T-cross section beam

Loading capacity:9000KG

Rear axleHC16, Casting axle housing, central double reduction with differential locks between axles and wheels
ColorOptional
Tire12.00R20 11 pieces

Electrical system



Operating voltage24V,negative grounded
Starter24V,7.35KW
Alternator28V,1500W
Batteries2*12V.165Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Cab

HW76 cab, (one sleeper,with air-condition),

all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers


.
