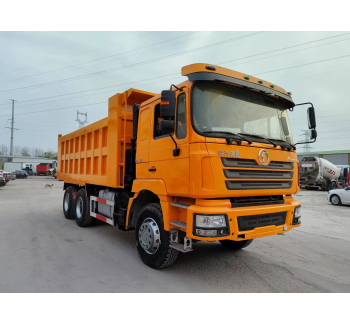

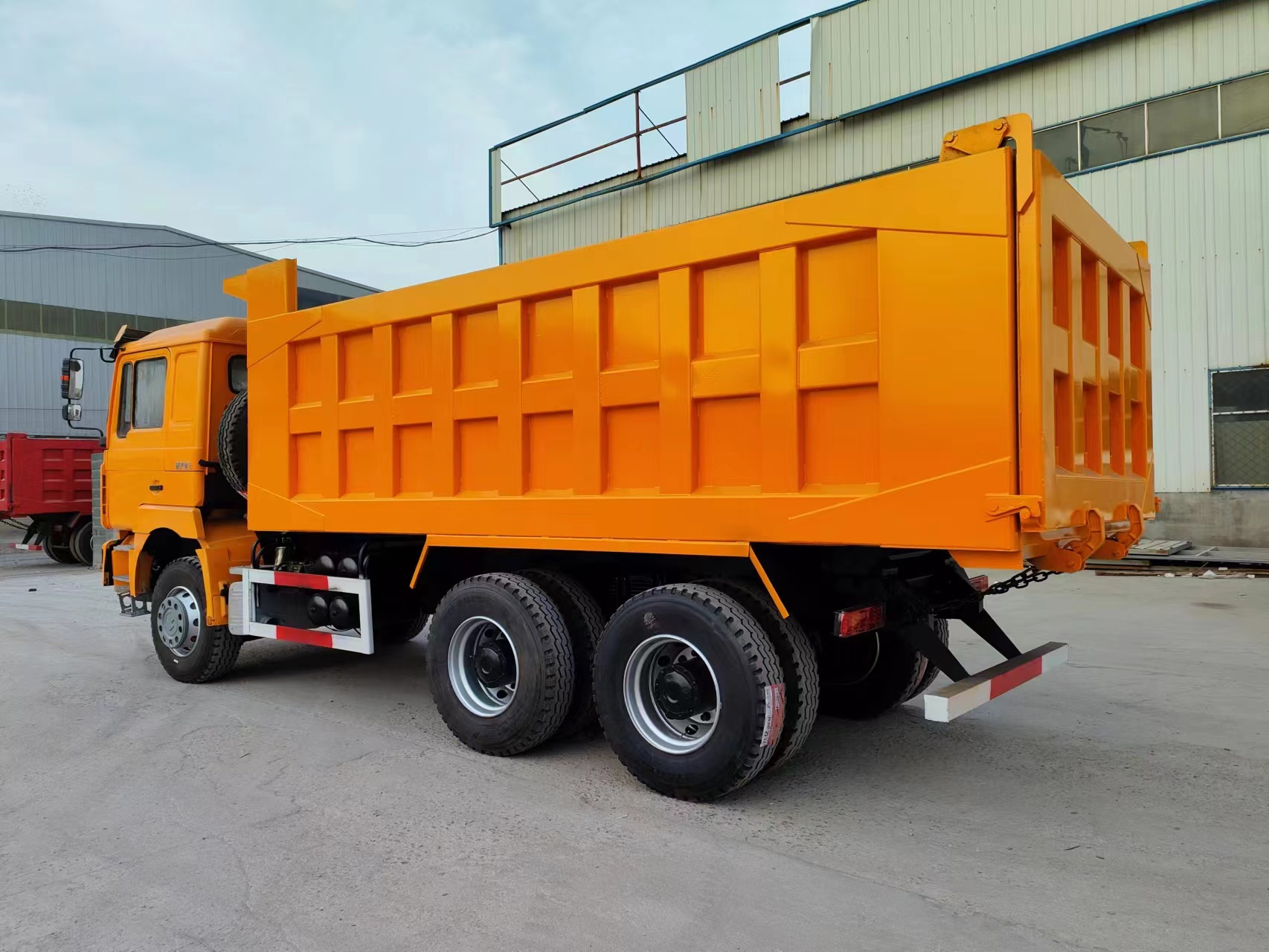

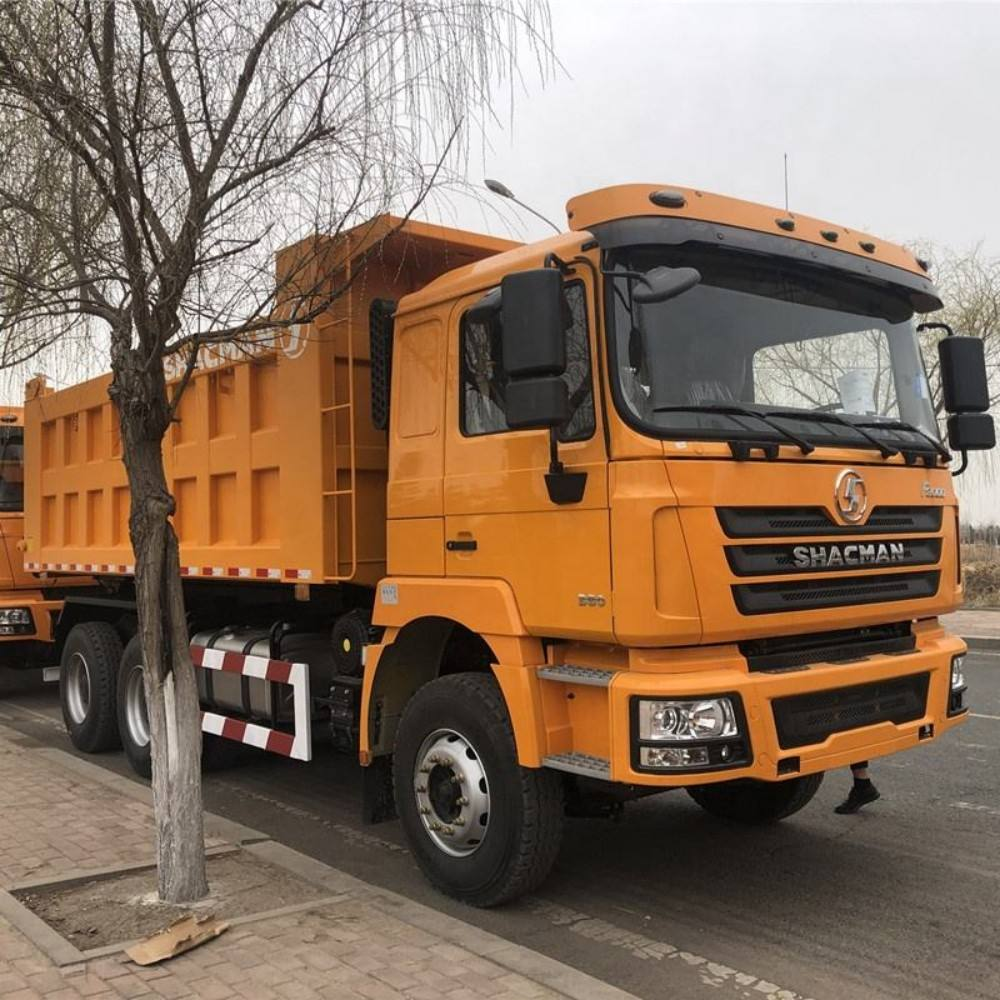

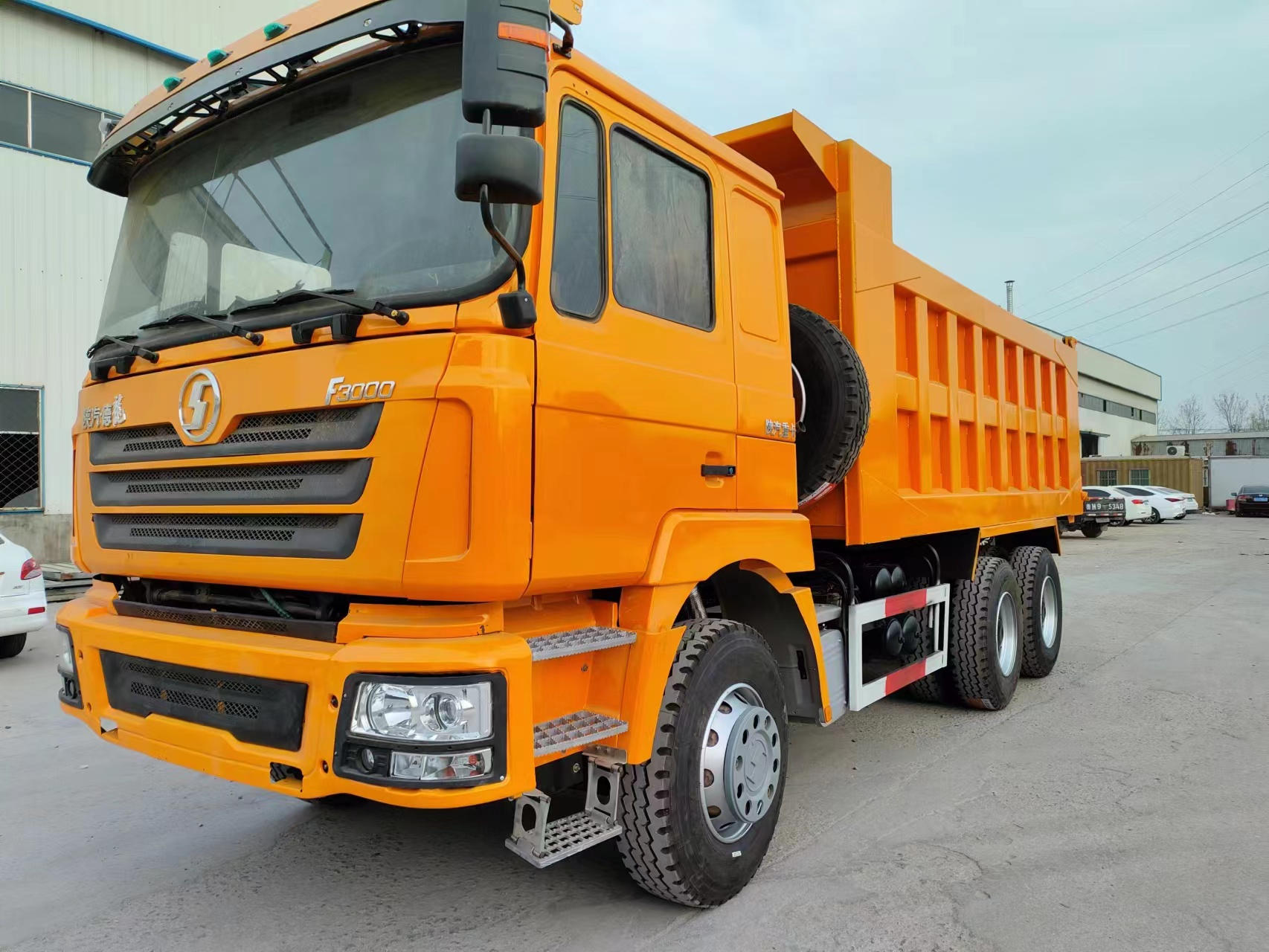

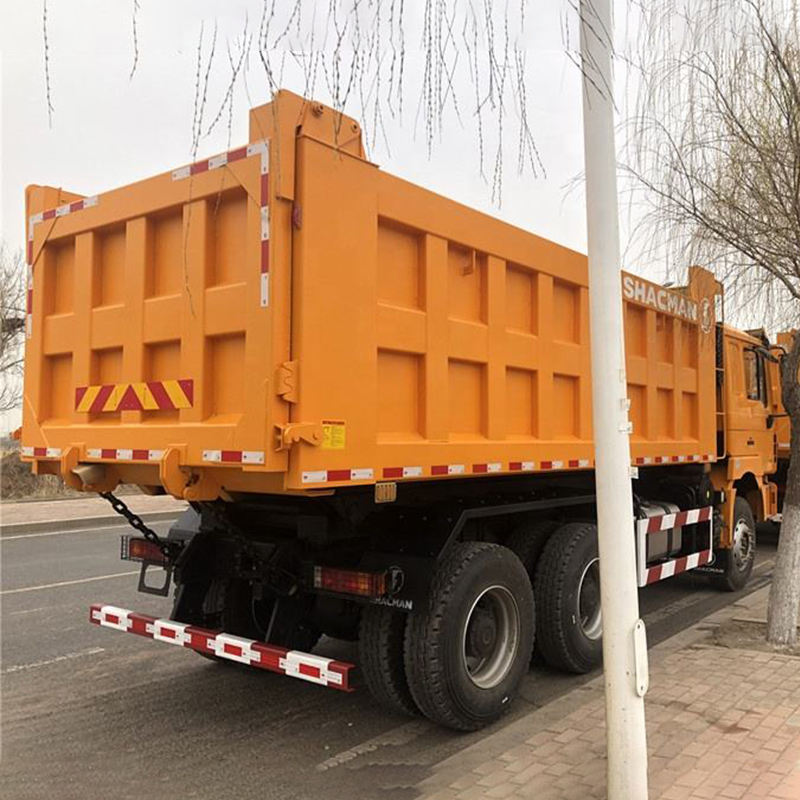

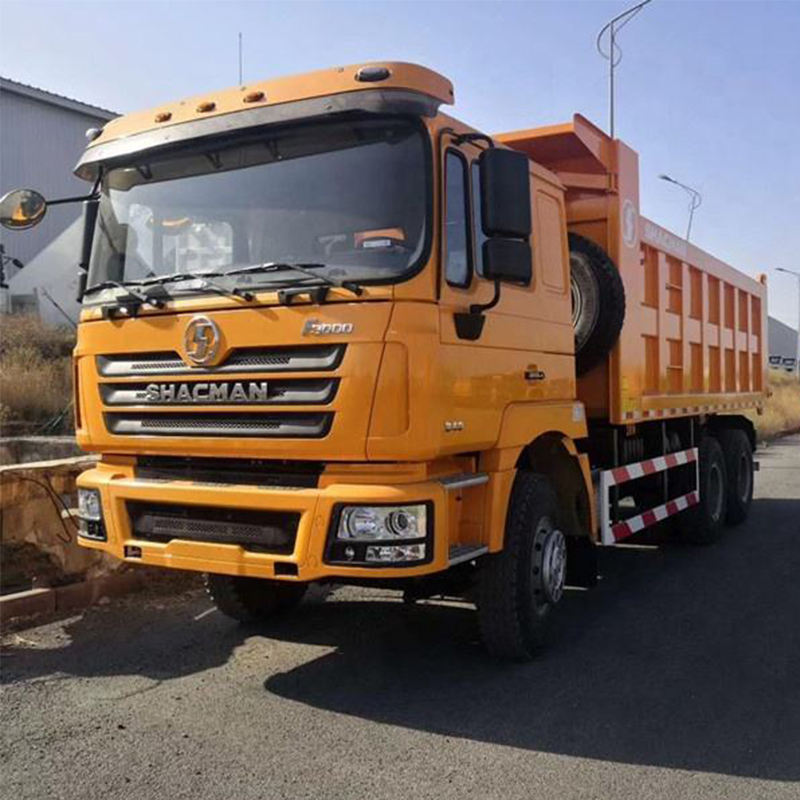

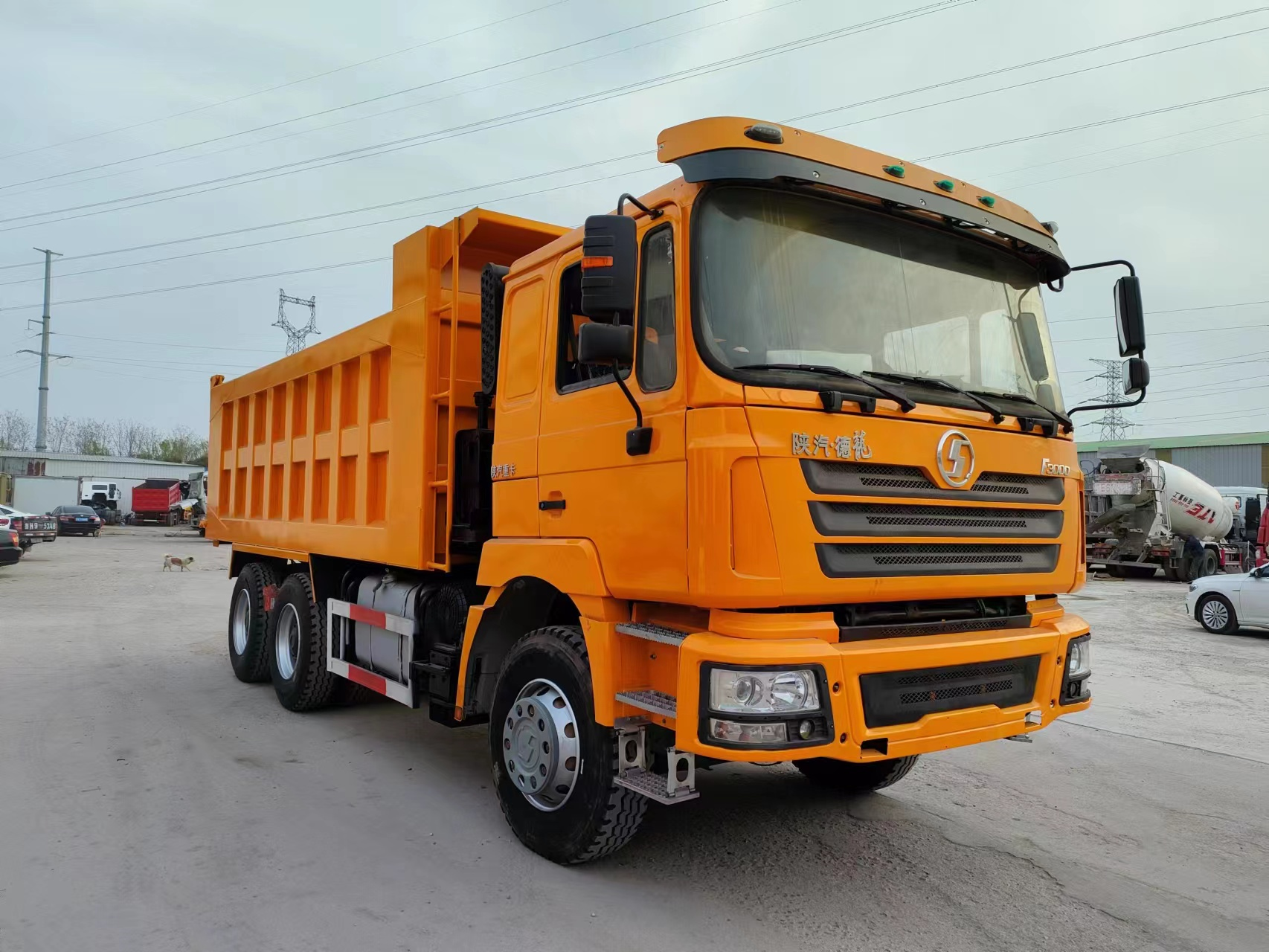

| Shacman Dump Truck F2000 F3000 H3000 6X4 8x4 340HP 380HP 10 Wheeler 40ton |
|
| Drive type | 6x4 |
| Cab | F3000 flat roof cab, rear window , hydraulic driver seat, four point hydraulic suspension cab, single sleeper , auto air conditioner , manu window, manu cab turning -off , metal bumper ,165Ah battery , radio with MP3 |
| Transmission | FAST -10JSD160 +QH50 (10-forward,2-reverse speeds ) |
| Engine /Horsepower | weichai power WP10.380E40 380hp |
| Steering | Z F tech left hand drive |
| Emission Standard | Euro II |
| Chassis | 850*300(8+7) mm |
| Suspension | Front and rear multi spring leaf with 4-U bolts |
| rear overhang | 850 mm |
| Front Axle | MAN 7.5 Ton front axle |
| Rear Axle | MAN 16 Ton Double Reduction ,speed ratio 5.262 |
| Wheelbase | 3775+1400mm |
| lifting system | font lifting system Φ180 |
| Body Dimensions (max) | 8335*2490*3450mm |
| upper body size | 5400*2300*1500mm |
| thickness | bottom 8 mm side 6mm |
| Tyre | 12.00R20/12R22.5 |
| color (optional) | optional |
| Fuel Tank | 400L aluminum |
| Note | delivery time 45 days |
