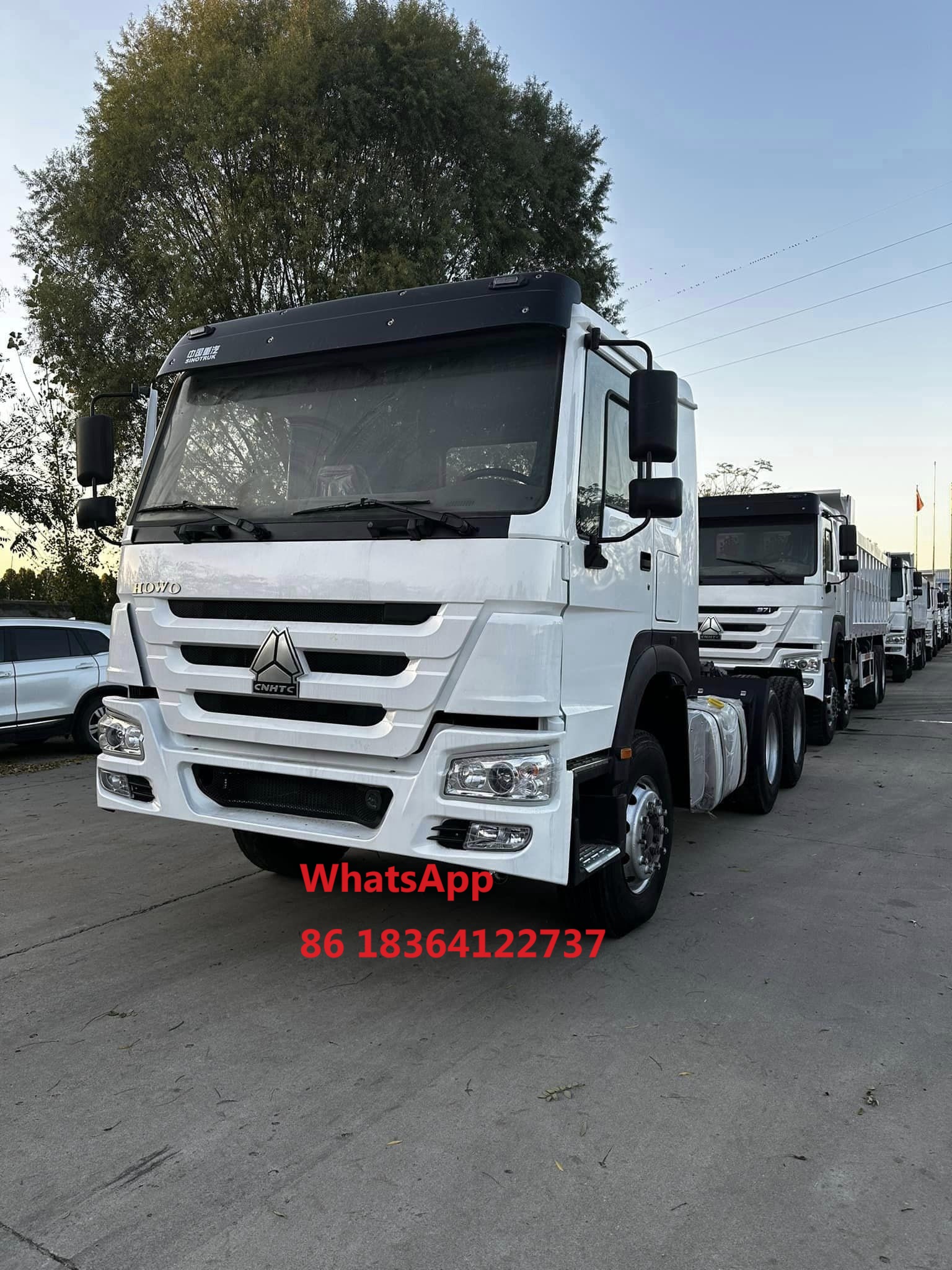

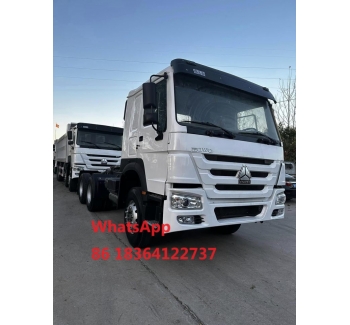

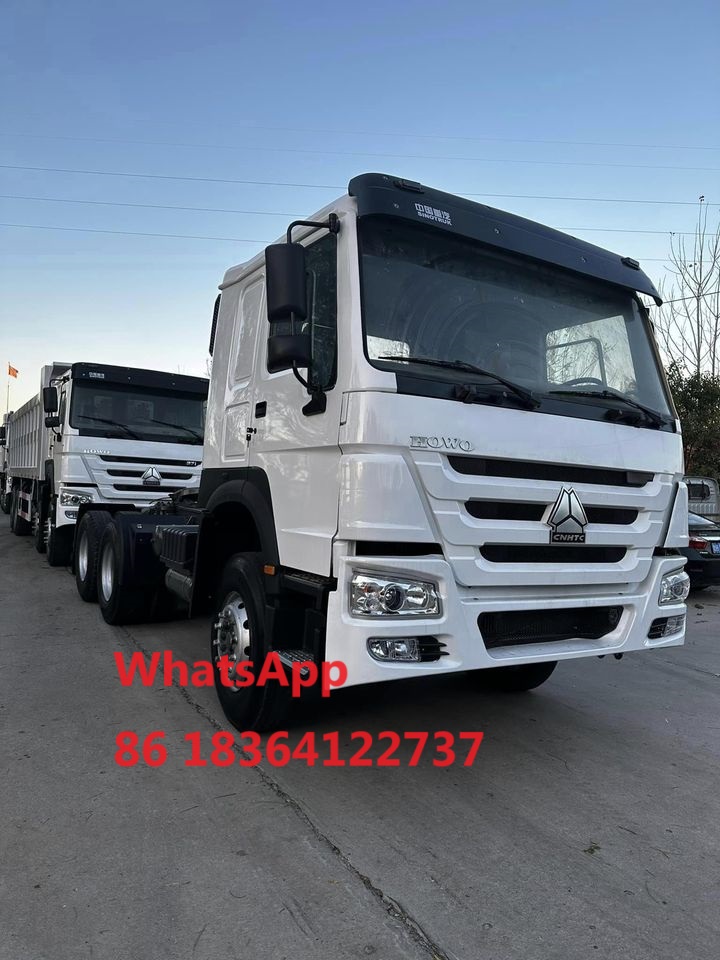

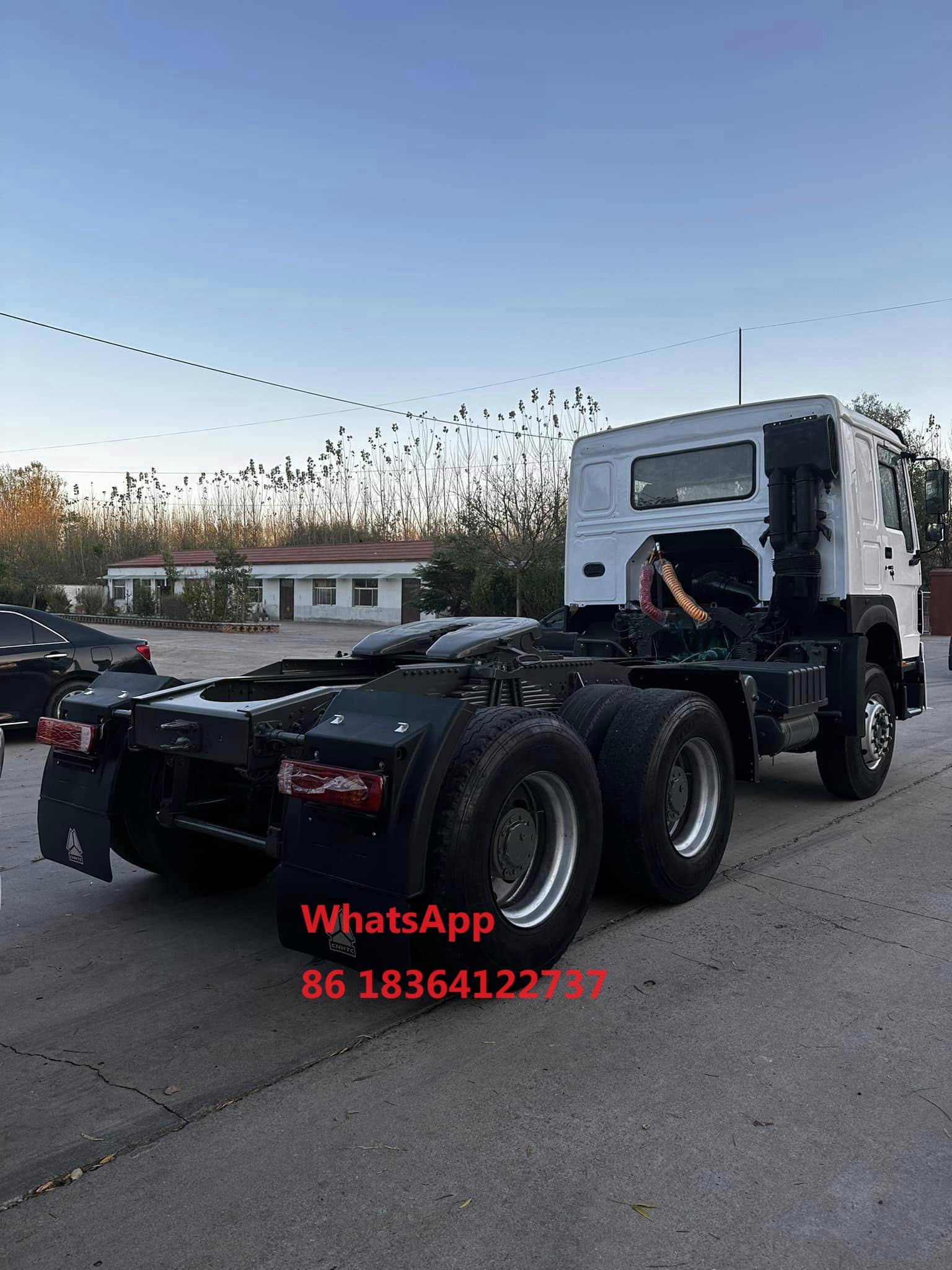

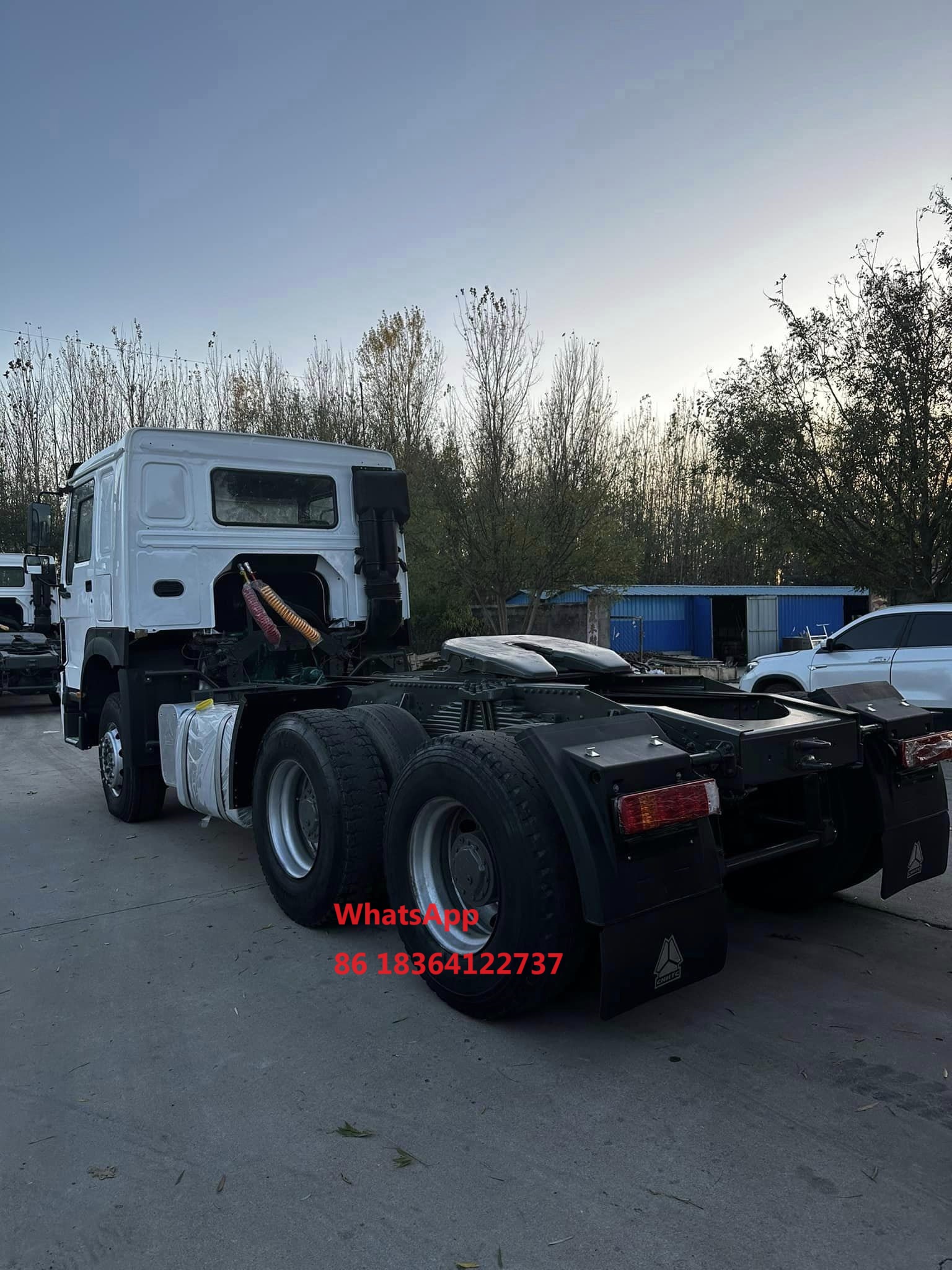

Sinotruk Howo tractor trucks are widely used for kinds of transportation. High reliability, strong power and considerate service of Sinotruk Howo products are important factors for customers. We will always stand with our customers and become their most loyal partner and trusted friends.
| VEHICLE SPECIFICATION | DESCRIPTION | |
| Truck Model | ZZ4257N3241 | |
| Type of Vehicle | TRACTOR TRUCK | |
| Truck Type | 6x4 | |
| Driving Position | Left hand Driving | |
| Fuel tanker capacity(L) | 400L | |
| The Total Mass | 50,000kg | |
| Dead Weight | 9210 | |
| Max speed(km/h) | 102 | |
| Color | Optional | |

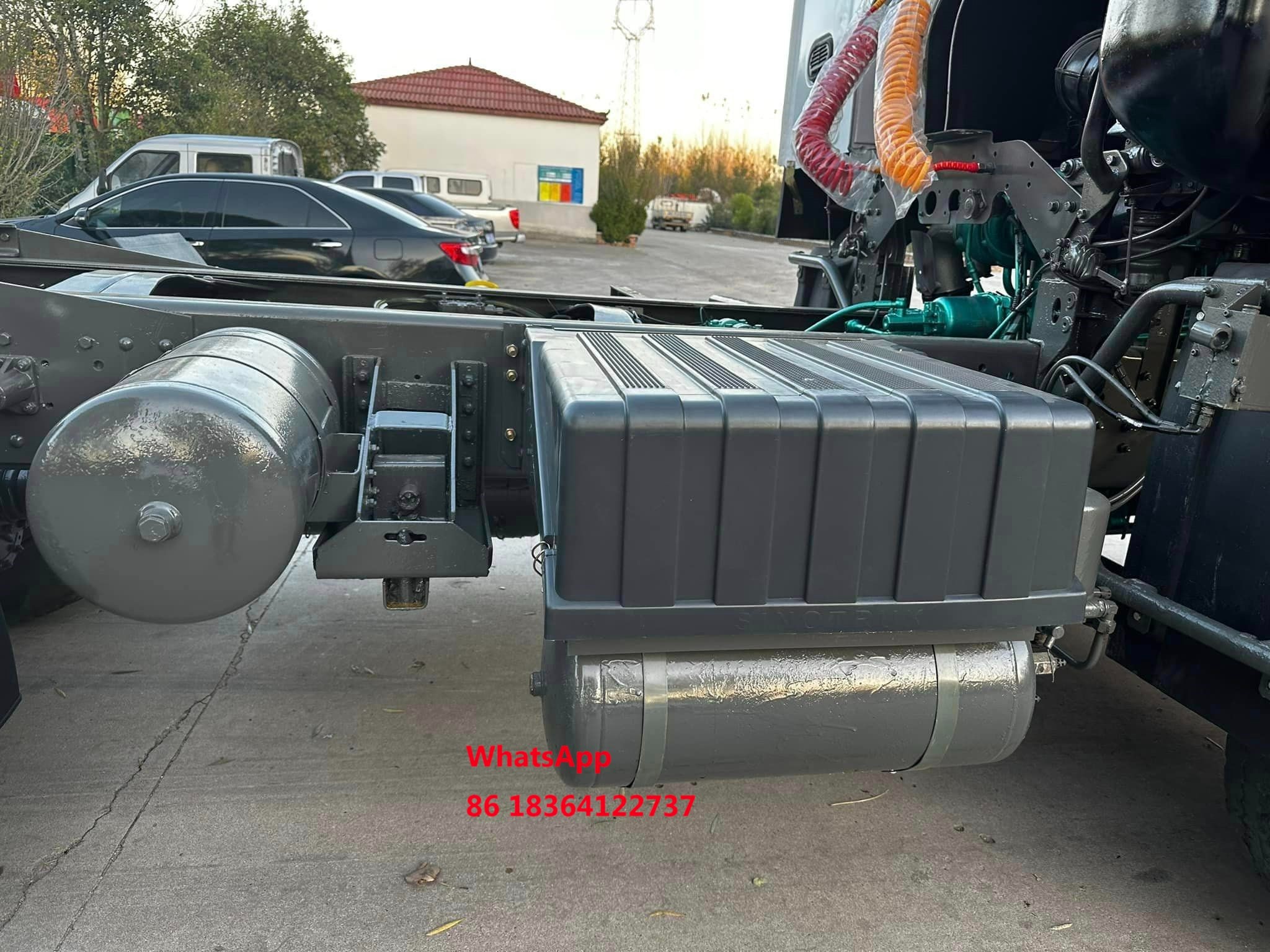

| Chassis & Add Components | ||
| Frame Details | High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members. | |
| Dimension(Lx W xH)(unloaded)(mm) | 6900*2560*3400 | |
| Approaching angle/Departure angle(°) | 16/70 | |
| Overhang(front/rear) (mm) | 1500/725 | |
| Wheel base (mm) | 3225+1350 | |
| Engine | ||
| Model | WD615.47 | |
| Power | 371HP | |
| Emission | EURO II | |
| Displacement(L) | 9.726 | |
| Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | |
| Kind of Fuel | Diesel | |
| Clutch & Gear Box System | ||
| Clutch | SINOTRUKΦ430mm diaphragm spring clutch | |
| Gear Box | HW19710 10 forwards and 2 reverse | |
| Axles | ||
| Front Axle Model | HF7 axle | |
| Rear Axle | ST16 axle | |
| Electrical System | ||
| Battery | 2X12V/165Ah | |
| Alternator | 28V-1500w | |
| Starter | 7.5Kw/24V | |
| Brake System | ||
| Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | Engine exhaust brake | |
| Steering system | ||
| Model | 8118 | |
| Type | hydraulic steering with power assistance | |
| Wheels & Tyres | ||
| Type | 12R22.5 | |
| Brand | Common Brand | |
| Quantity | 10+1 spare | |
| Kin pin | 50mm or 90mm | |

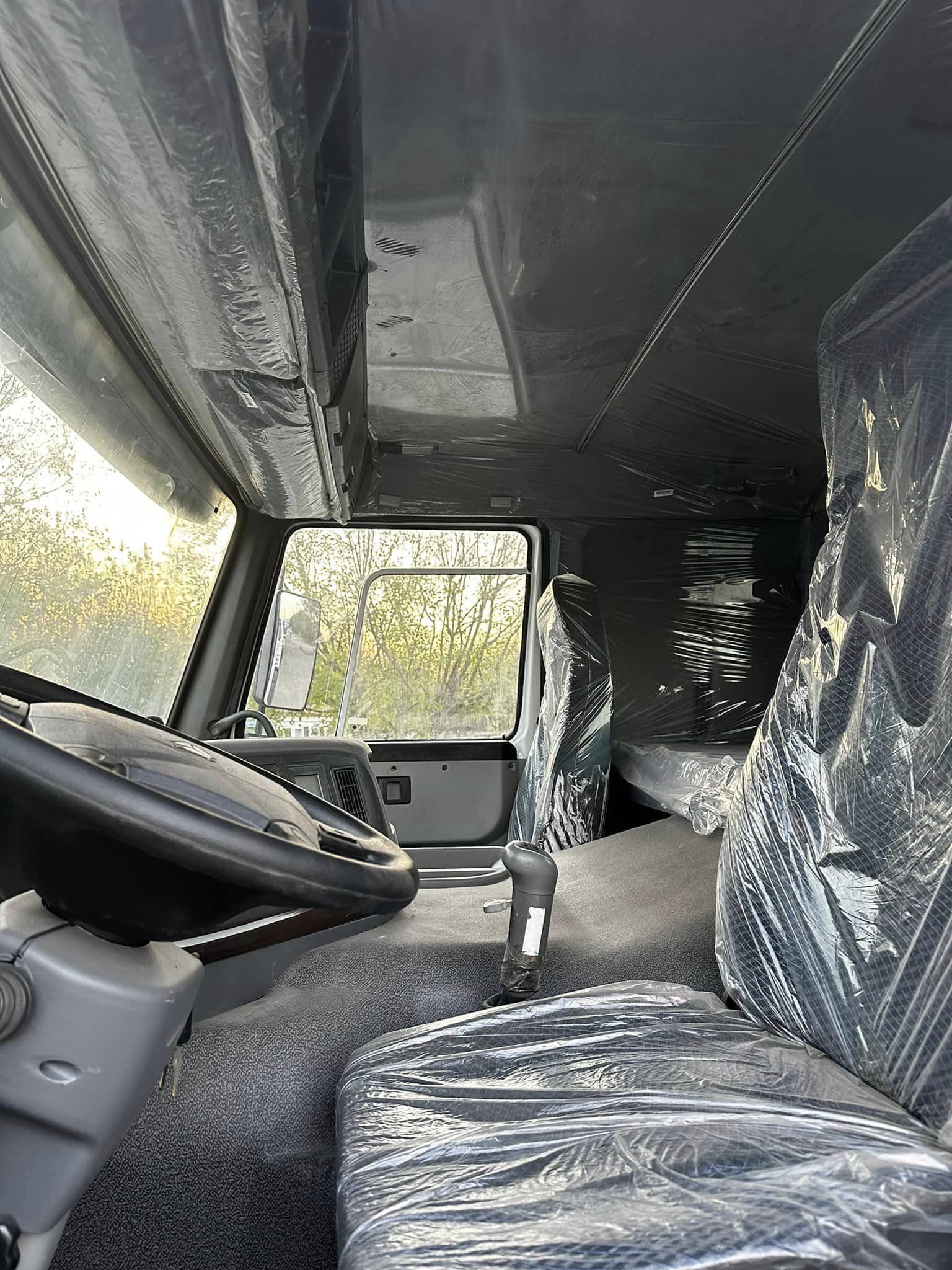

| Cabin | ||
| Type | HW79 Standard cabin | |
| Double sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||
