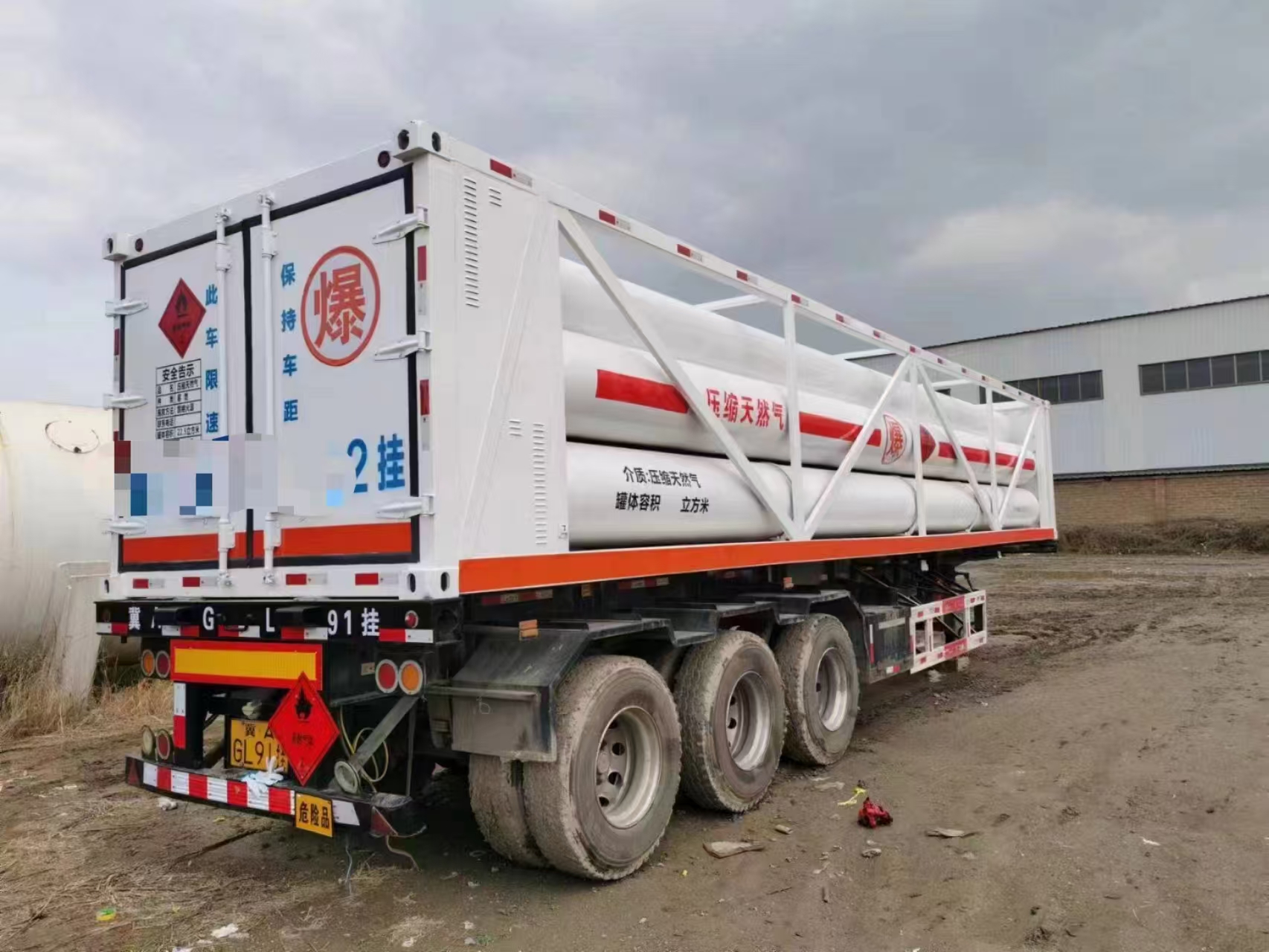

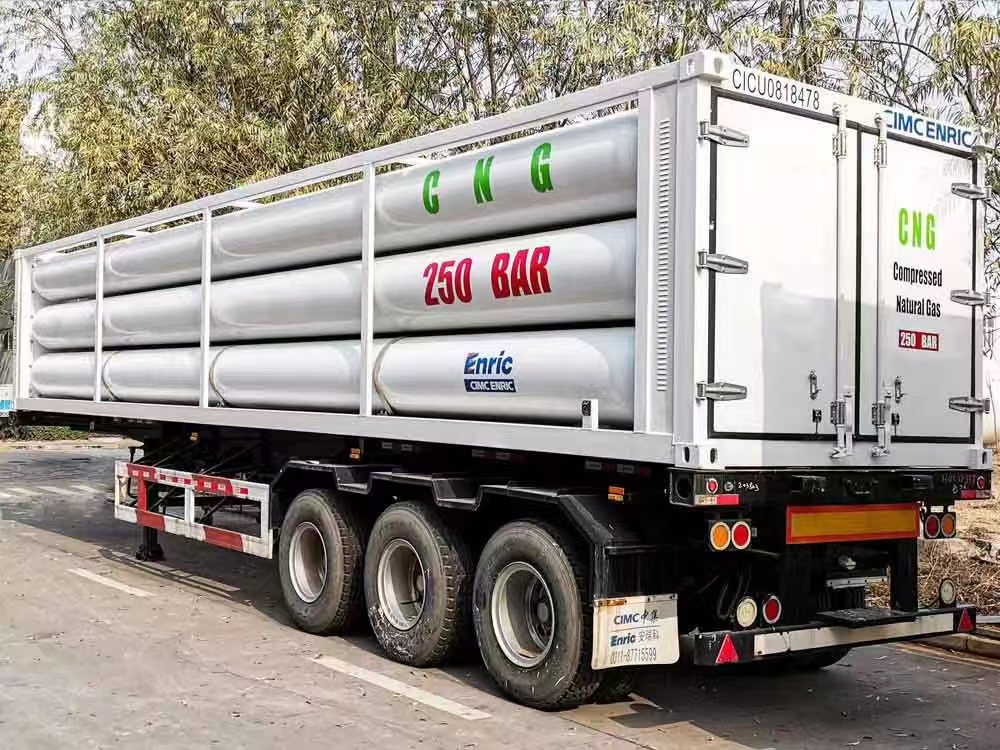

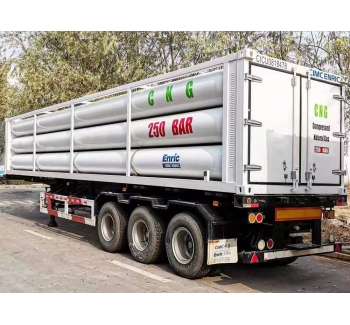

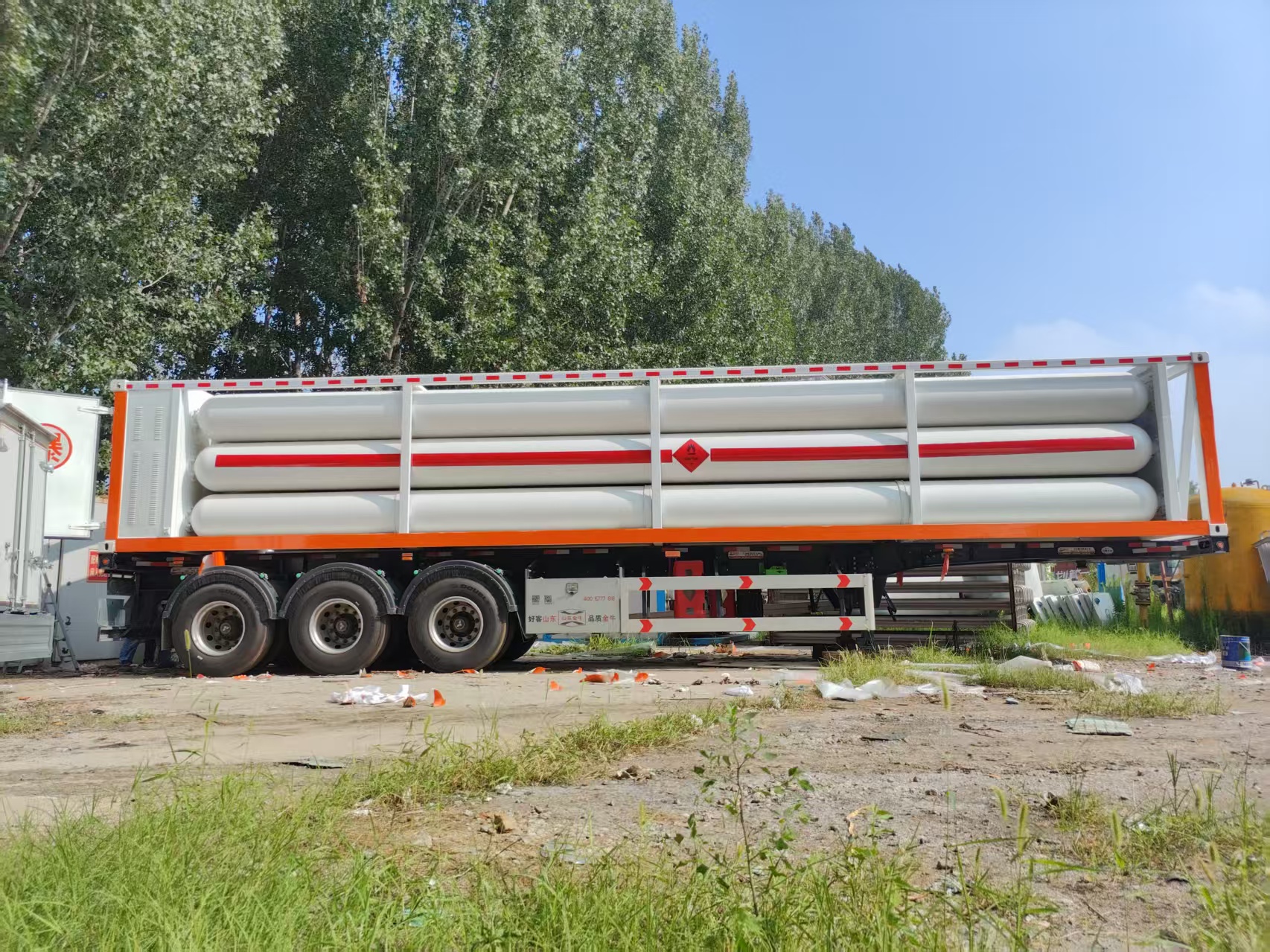

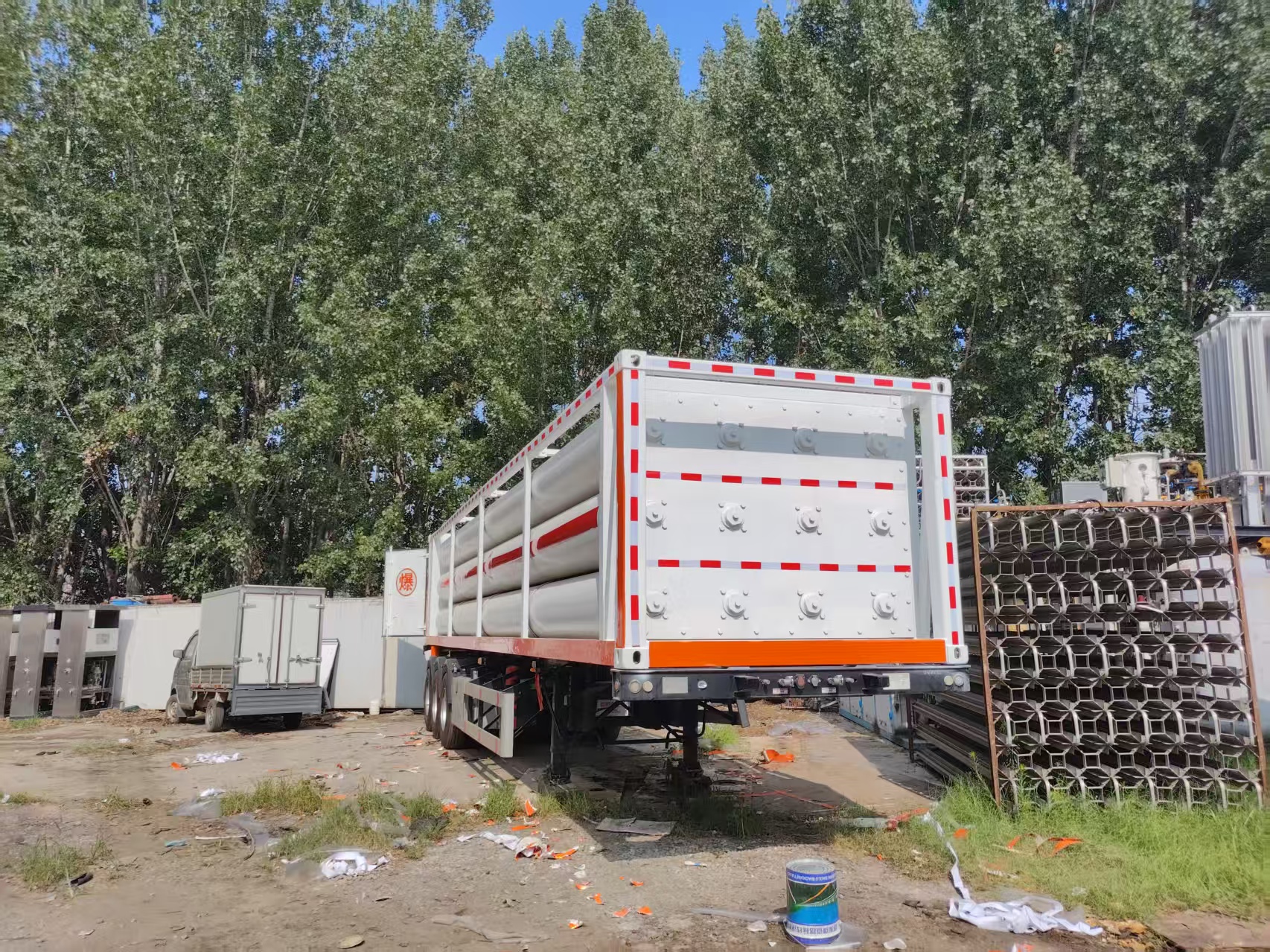

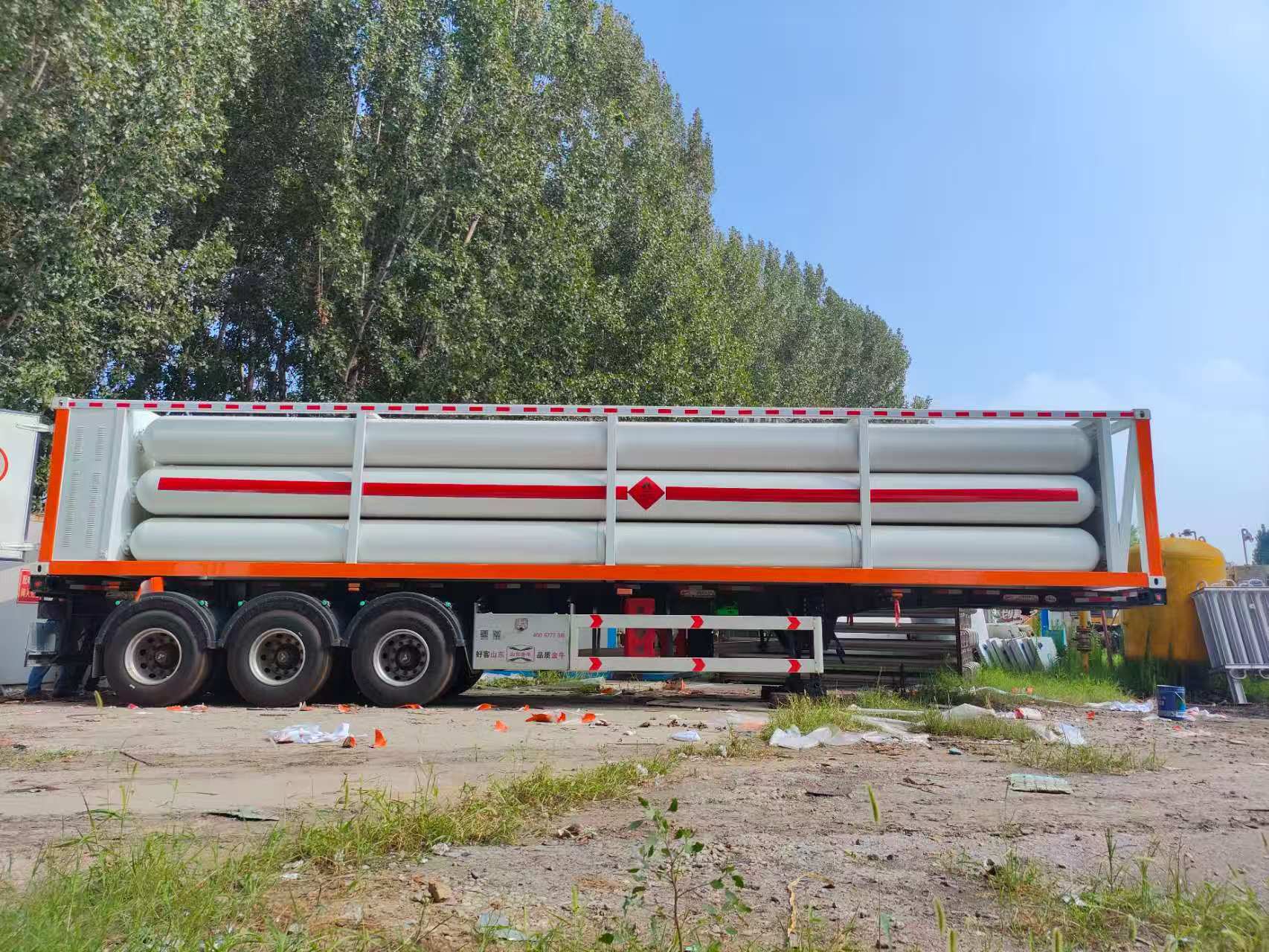

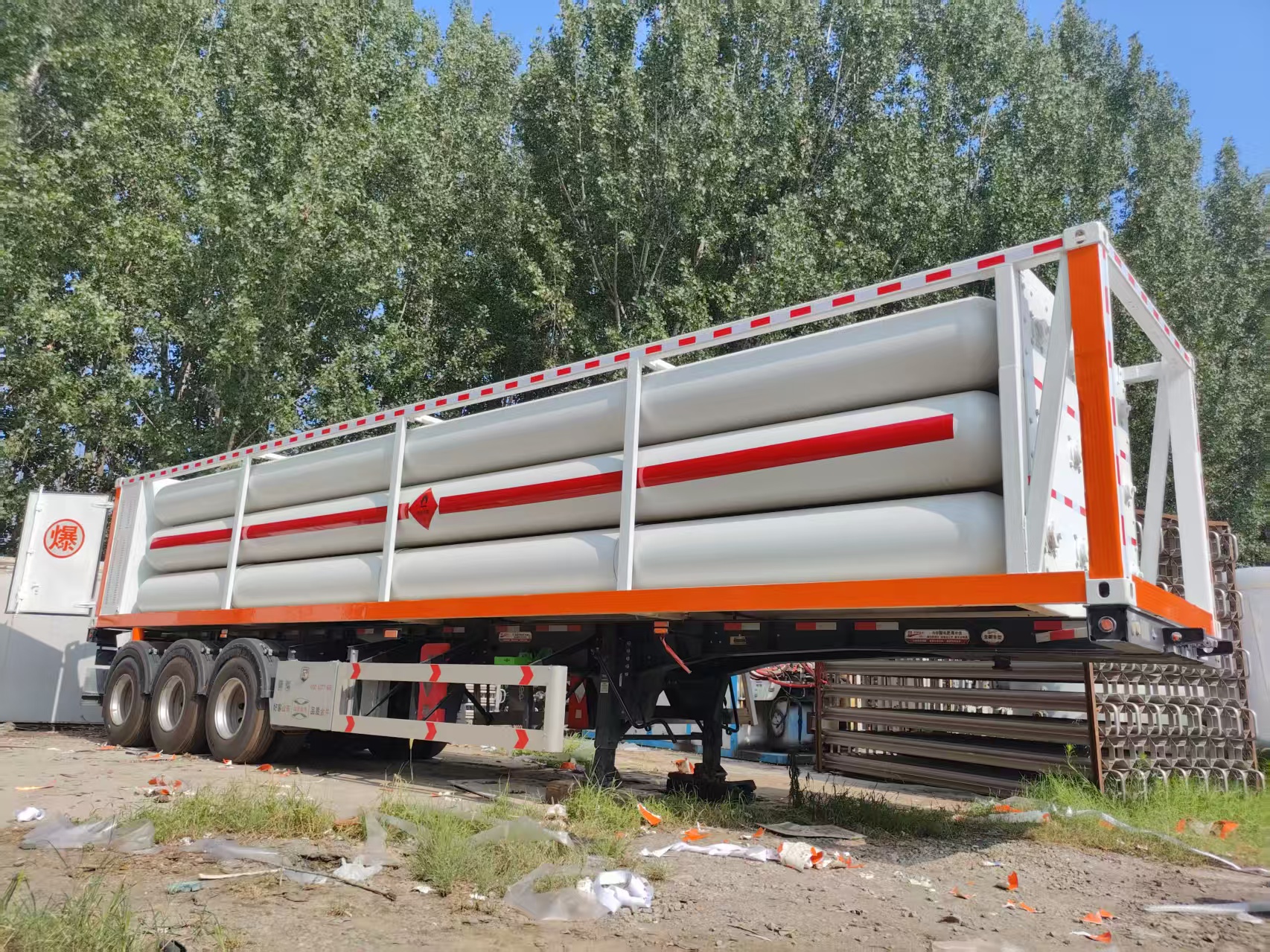

CNG Tube Skid for Efficient Compressed Natural Gas Storage & Transportation
The CNG Tube Skid is an innovative and efficient solution for Compressed Natural Gas (CNG) transportation and storage. Designed for high-pressure applications, it offers flexibility, convenience, and cost-efficiency. Ideal for transporting CNG in large quantities, this system is perfect for CNG stations, daughter stations, and road transport of CNG. The CNG tube skid system features high-pressure cylinders that typically store CNG at 200 to 250 bar (2,900 to 3,600 psi), ensuring safe and reliable transport.
| CNG Tube Skid Tank Container | |
| Overall dimension | 12192*2438*2000mm(40FT SIZE) |
| Net weight | Approx 34805kg |
| Total weight | Approx.41420kg |
| Working pressure | 250 bar |
| Leak test pressure | 250 bar |
| Hydrostatic test pressure | 375bar |
| Working temperature | -50-65(ºC) |
| Total capacity | 29.4M3 |
| Gas capacity | 9261Nm3 @15("ºC) |
| Gas Weight | 6615kg @15(ºC) |
| Number of Cylinder tube | 12 |
| Cylinder SIZE | OD559(diameter)*11650mm |
