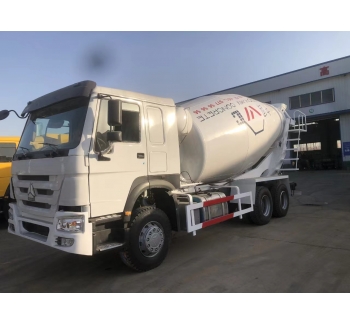

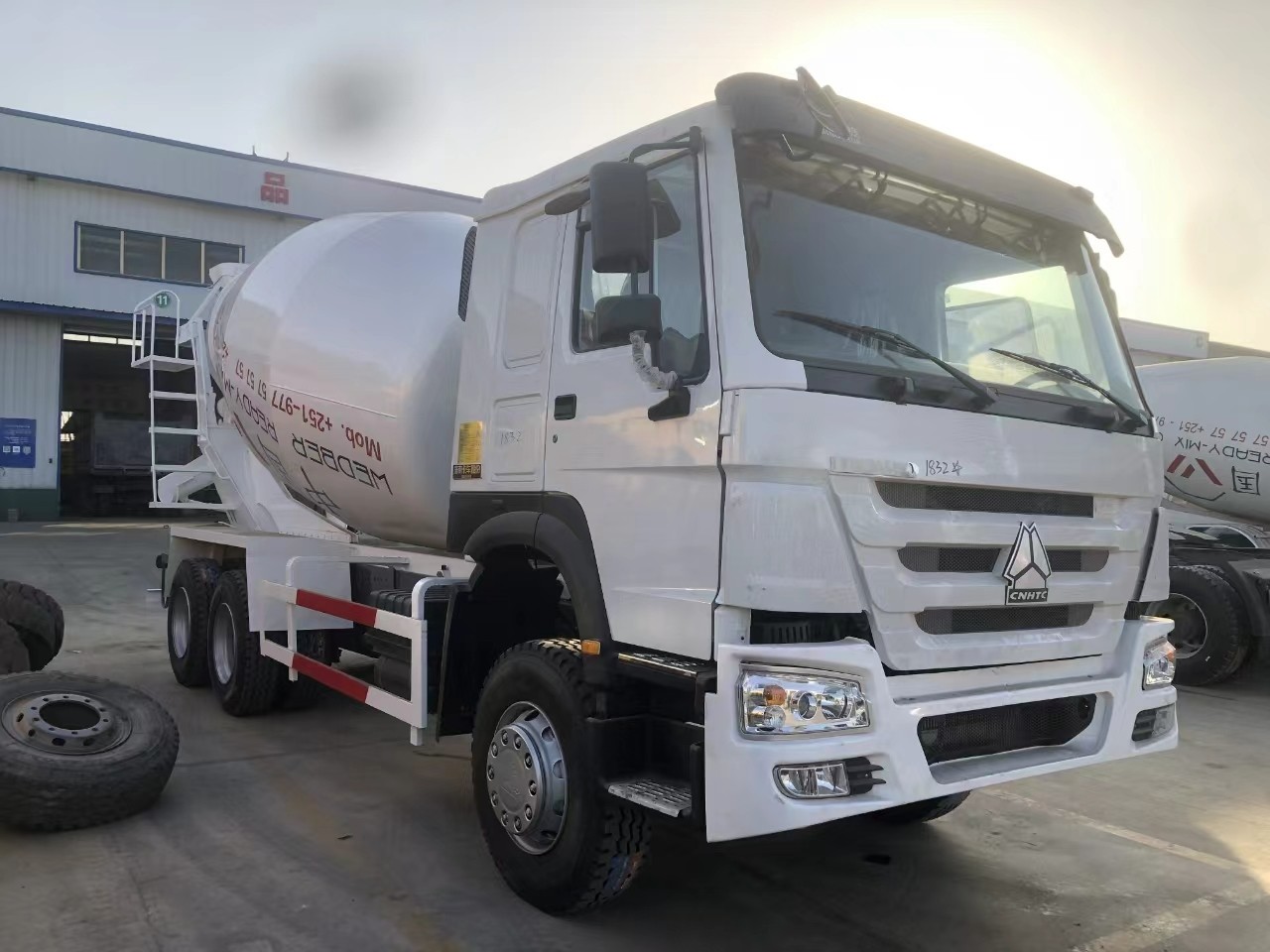

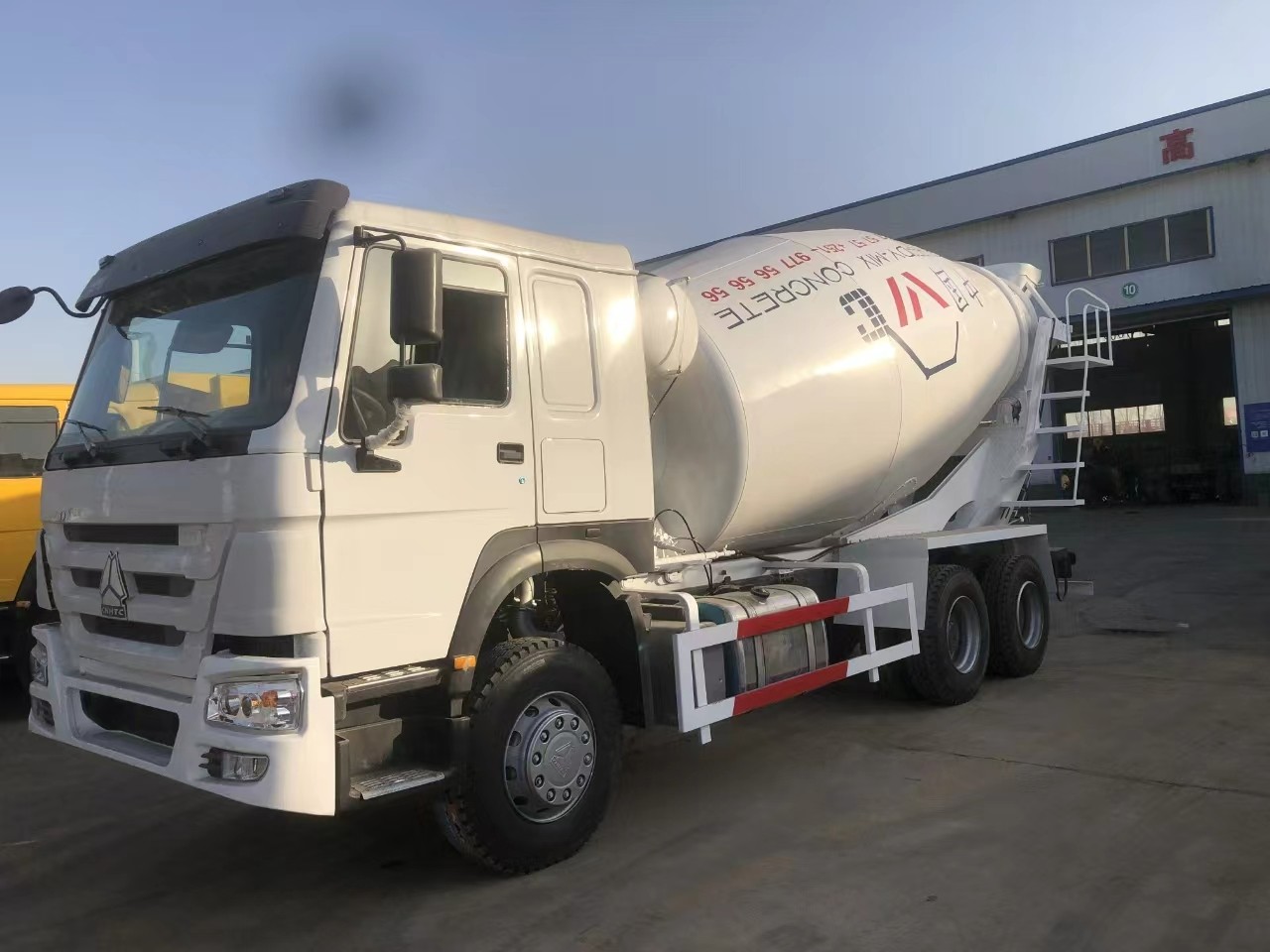

The mixer truck is a specialized vehicle designed to transport concrete for construction purposes. Due to its unique shape, it's often referred to as a field snail car or olive truck.These vehicle

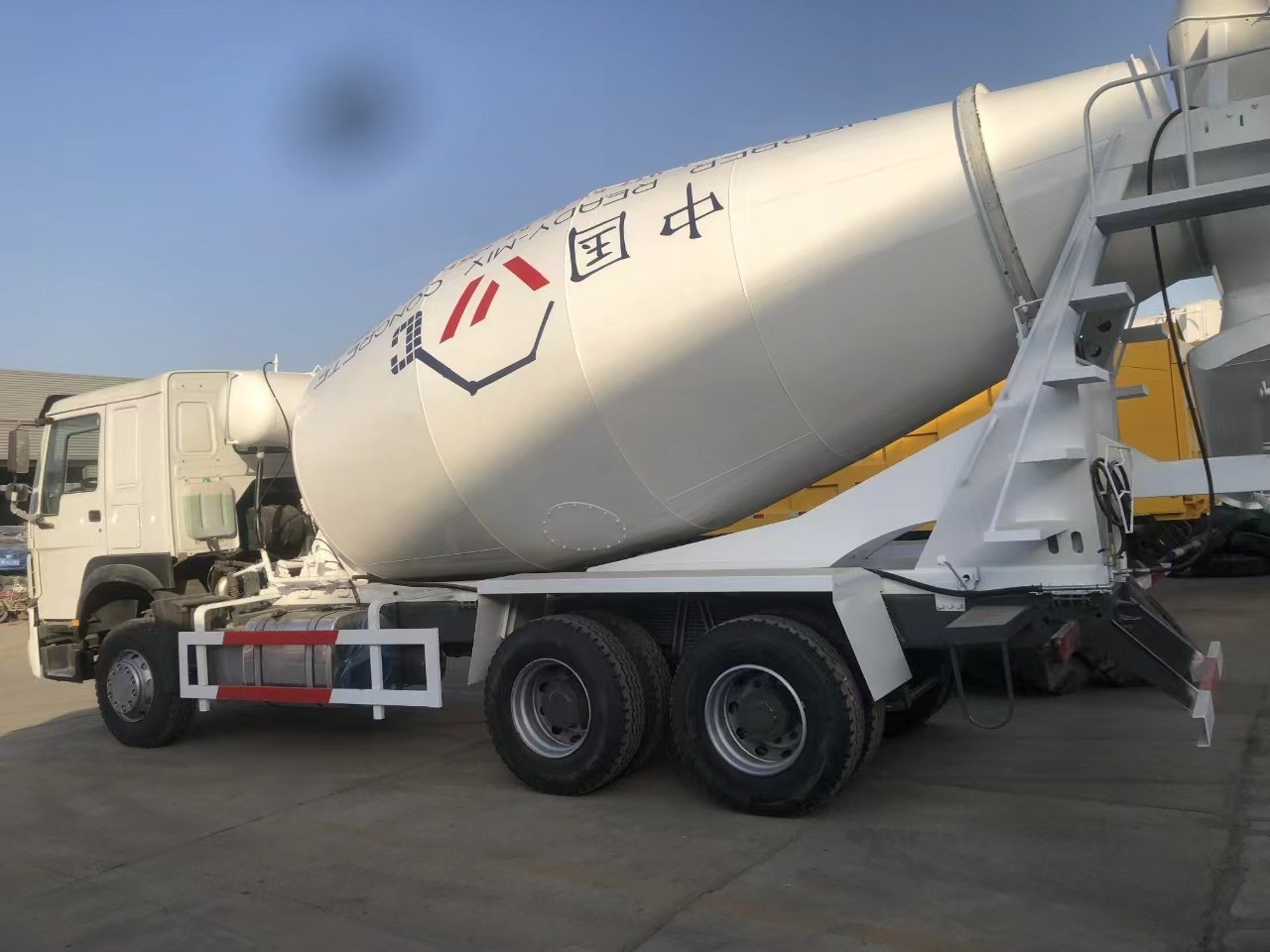

The mixer truck is a specialized vehicle designed to transport concrete for construction purposes. Due to its unique shape, it's often referred to as a field snail car or olive truck.
These vehicles are equipped with cylindrical mixers to carry the mixed concrete efficiently.
brand | Sinotruk Howo | |

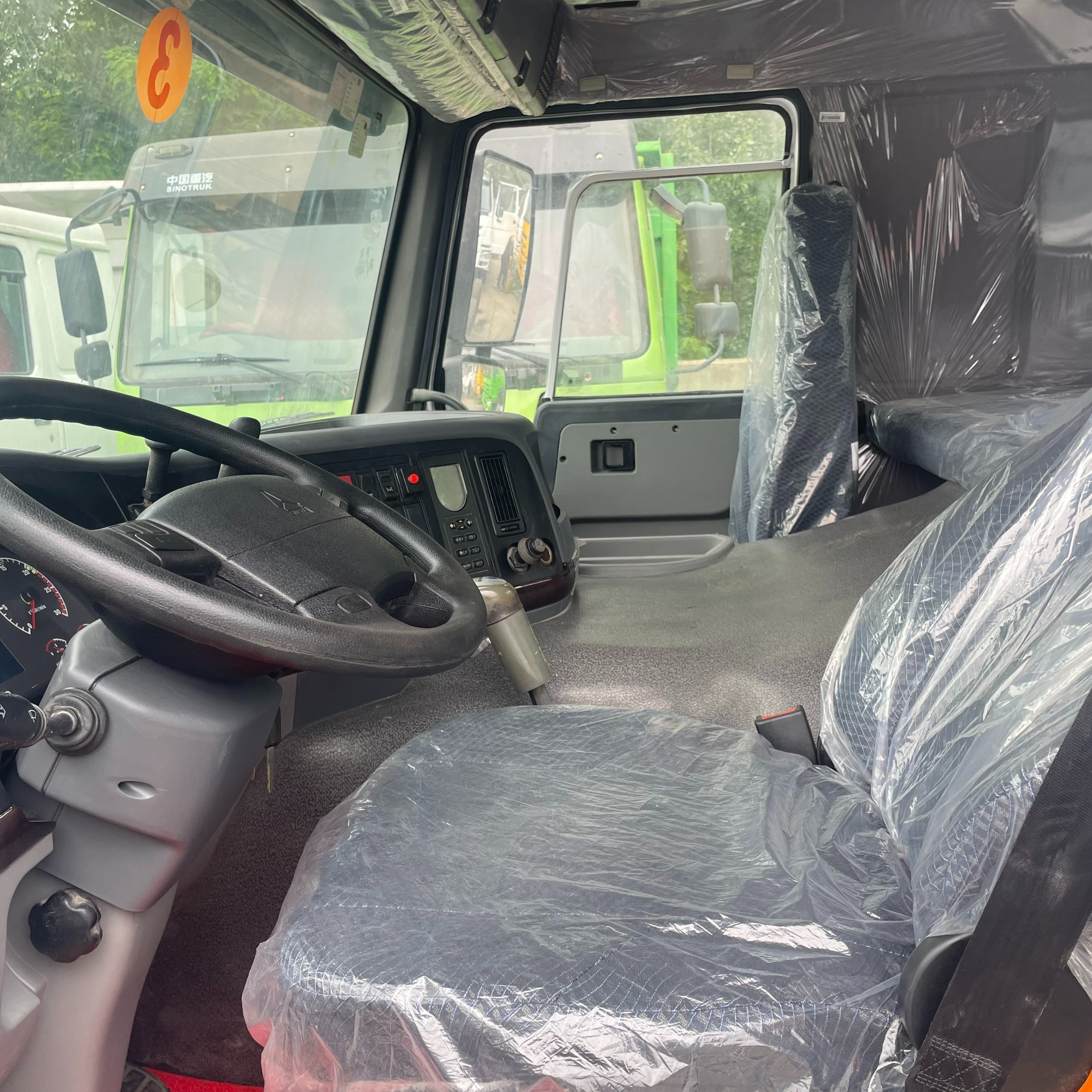

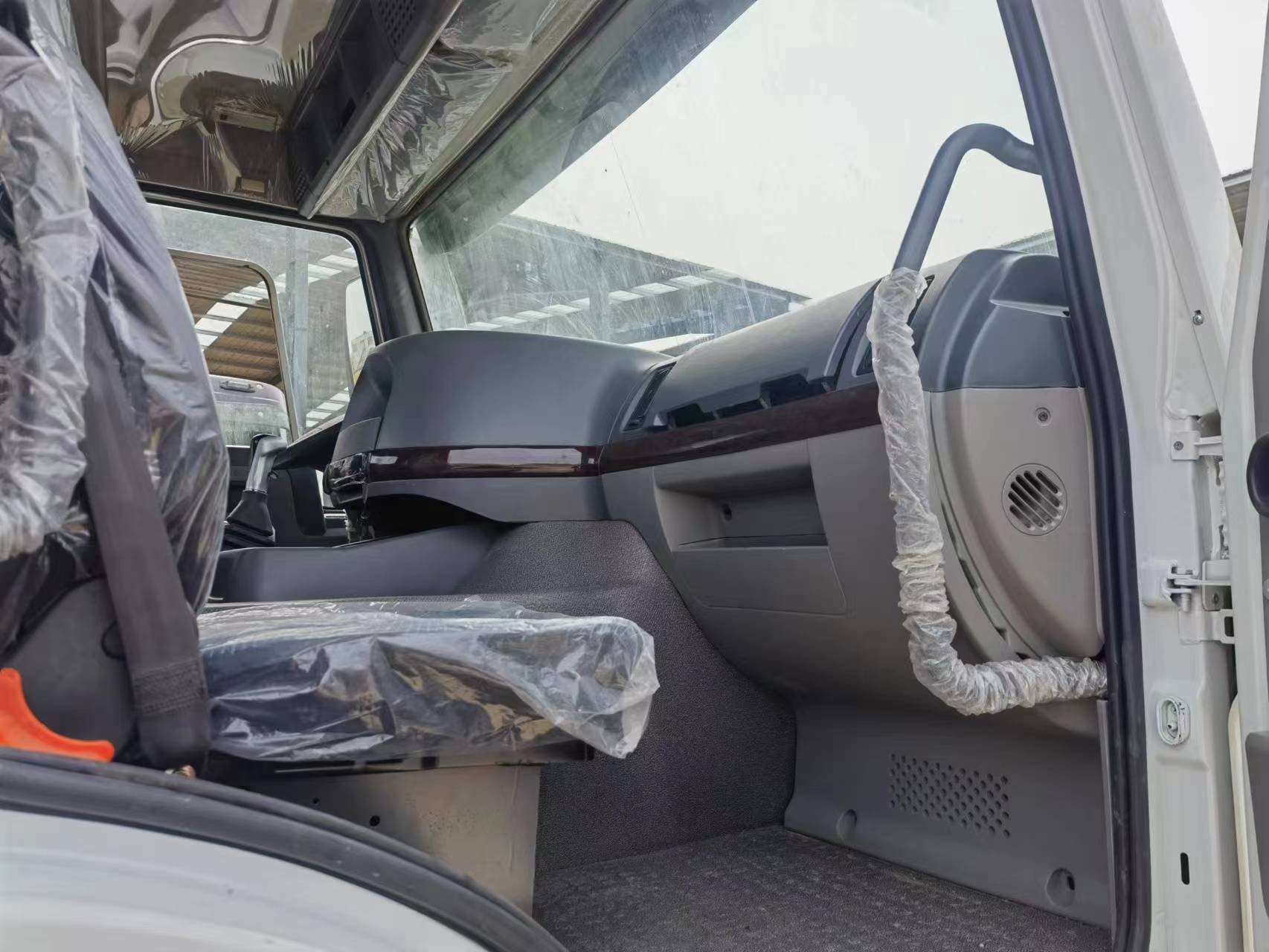

Cabin | Driving type 6x4, LHD | |
HW76 single bed | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
Wheel base (mm) | 3600+1350 | |
Wheel track (front/rear) (mm) | 2022/2022 | |
Approach/Departure angle(°) | 16/24 | |
Max. driving speed(km/h) | 90 | |

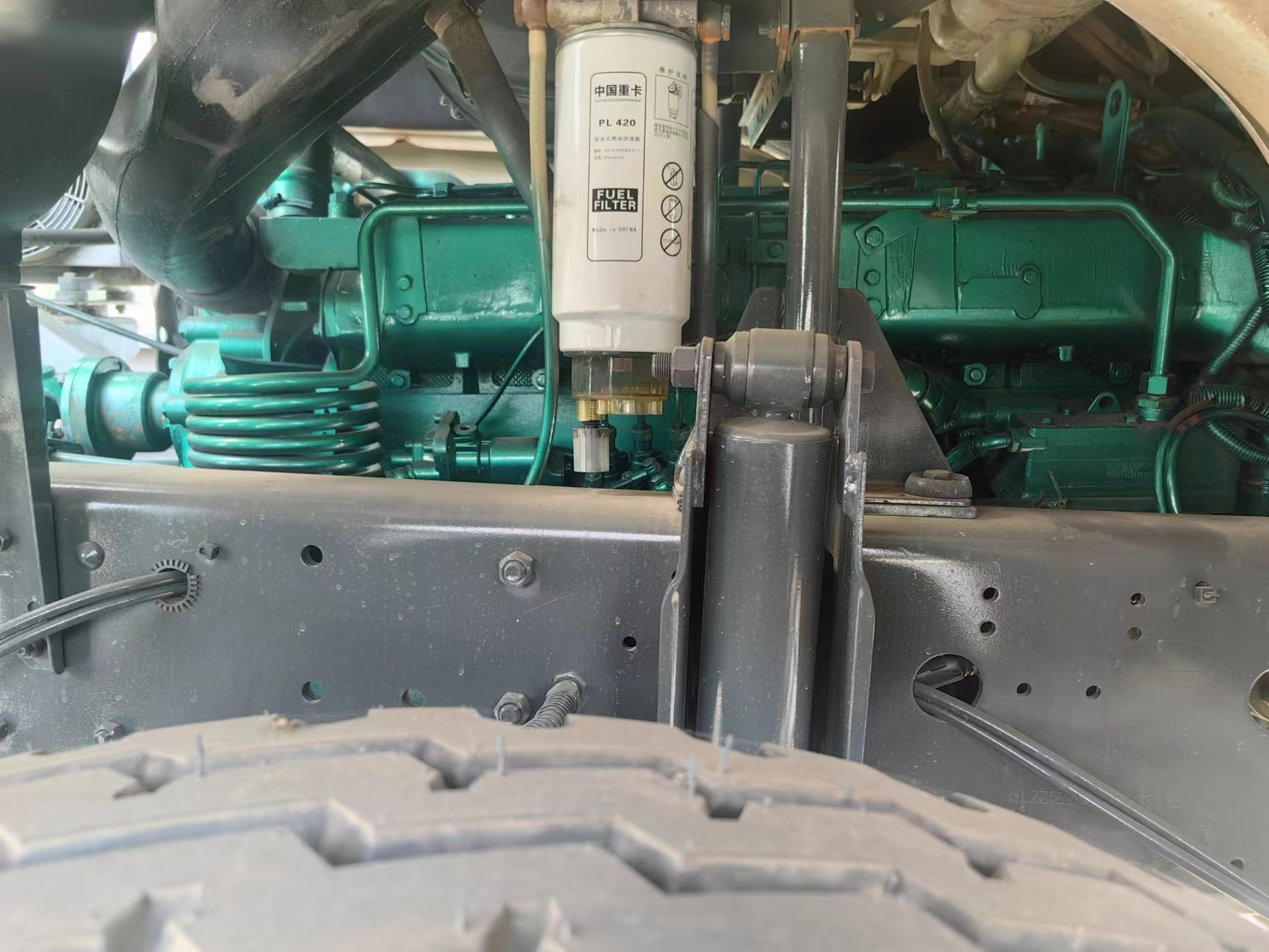

Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
Model | WD615.47 | |
Horse Power(HP) | 371 | |
Emission standard | Euro II | |
Gearbox | 10 forwards & 2 reverse | |
Steering | Left hand drive | |
Tire | 12R22.5 tubeless tires with one spare | |

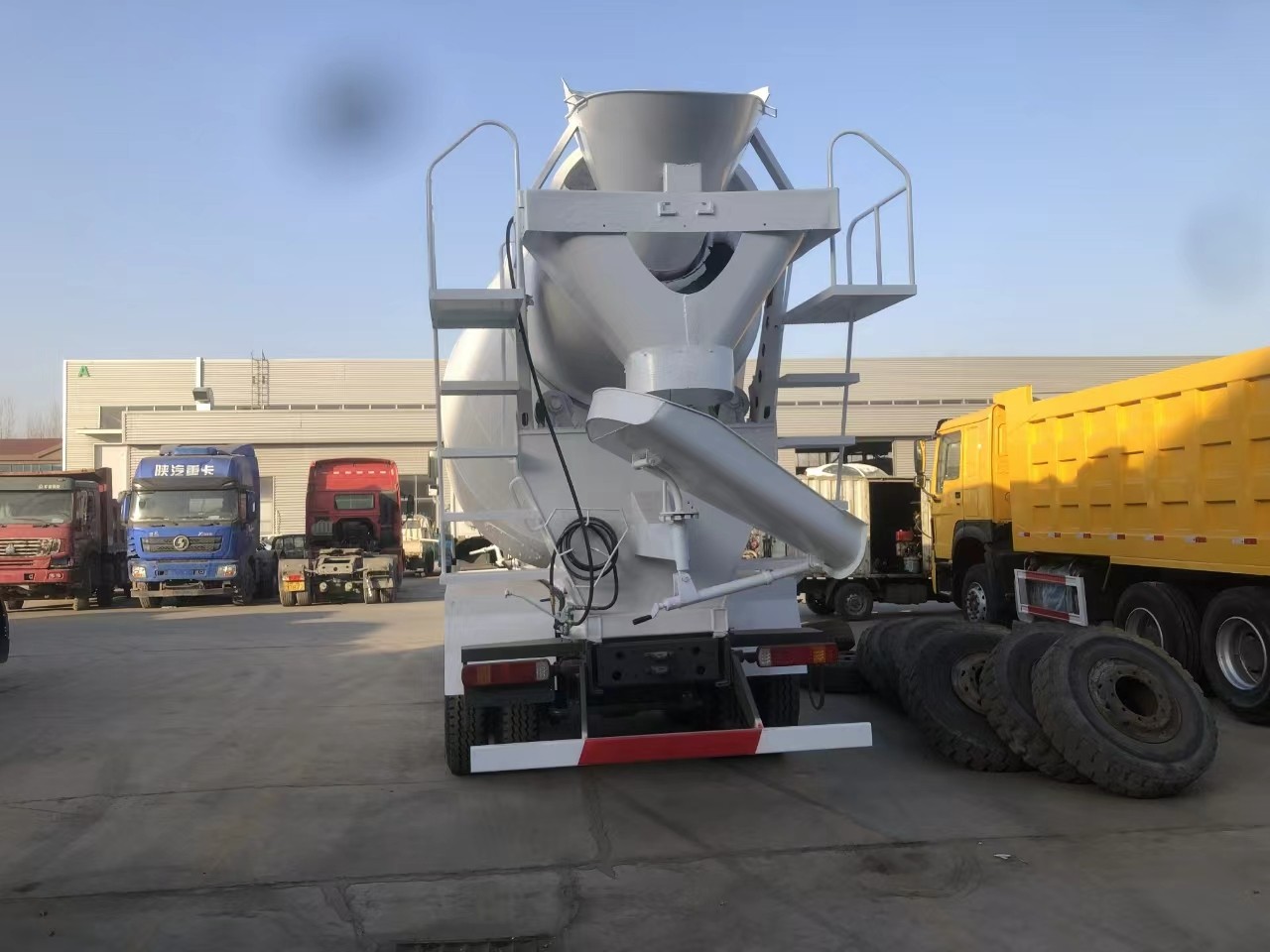

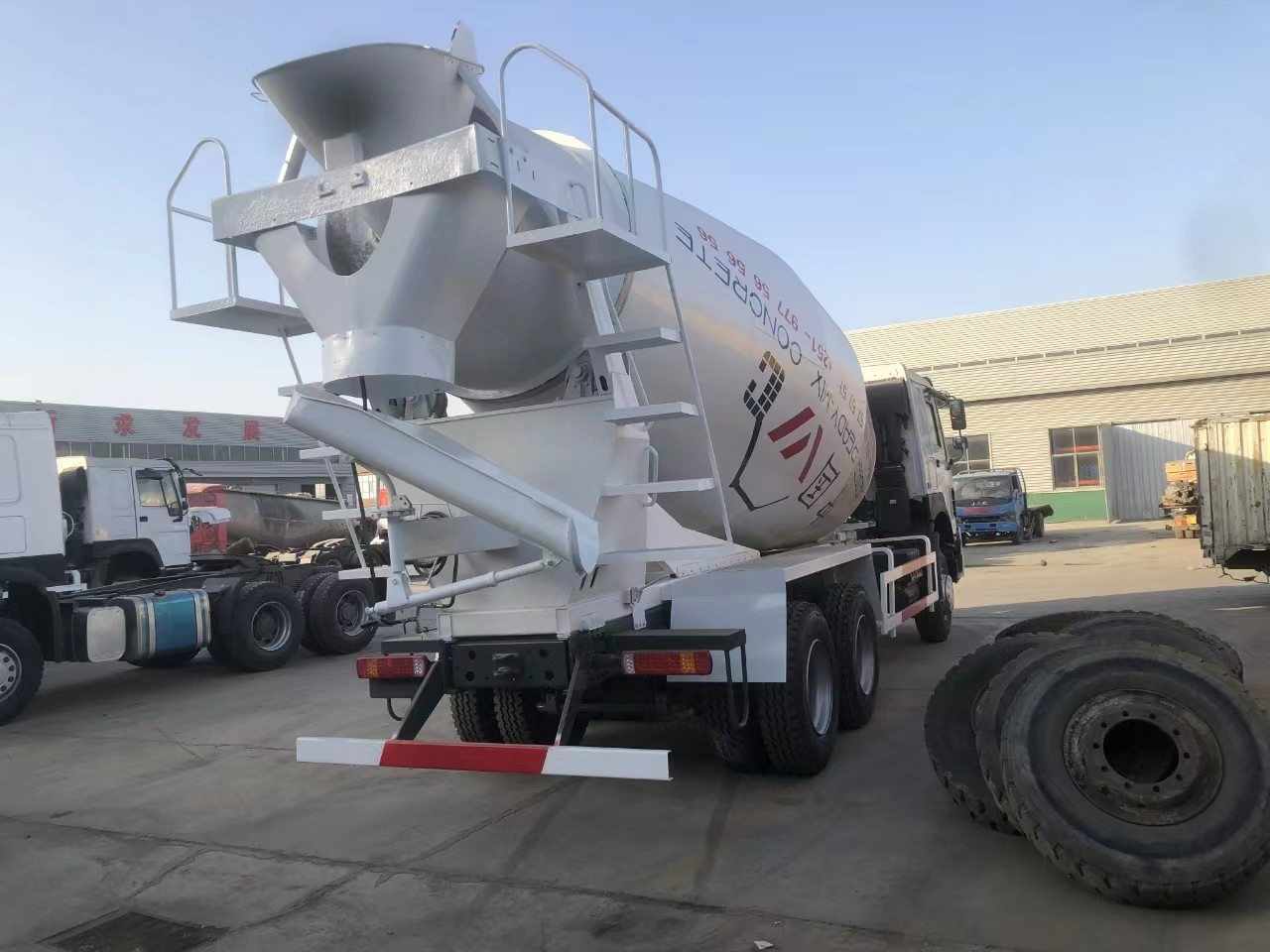

Mixer Drum | Mixer Capacity | 16 cubic meters |
Drum thickness | 6mm | |
Blade thickness | 4mm | |
Tanker Material: | 16MnQ345 Carbon Steel | |
Filling Rate(%) | 59 | |
Input Speed (m3/min) | ≥2.8 | |
Output Speed (m3/min) | ≥1.2 | |
Surplus Ratio | ≤0.5 | |
Tanker Rotate Speed(rpm) | 0~17 | |
Hydraulic Pump | Italy Brand: PMP | |
Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
Speed Reducer | Germany Brand | |
Radiator | KAITONG | |
Water Tank Volume(L) | 400 | |
Pre-service:
Inquiry and Consulting support.
Sample testing support.
View our factory.
Design various solutions as buyer's requirement.
After-sale service:
Training how to use and maintain the truck.
Our engineers supply the support of technology.
12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
Parts supply on time.
24 hours service and technology support.
