SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.
Jinan Kinova Auto Parts Company mainly deal with Sinotruk Howo heavy duty trucks /all spare parts and service. We supply 4X2, 6X4, 6x6, 8x4 and 8x8 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 336 horse power to 540 horse power, and loading capacity cover from 5 tons to 60 tons.

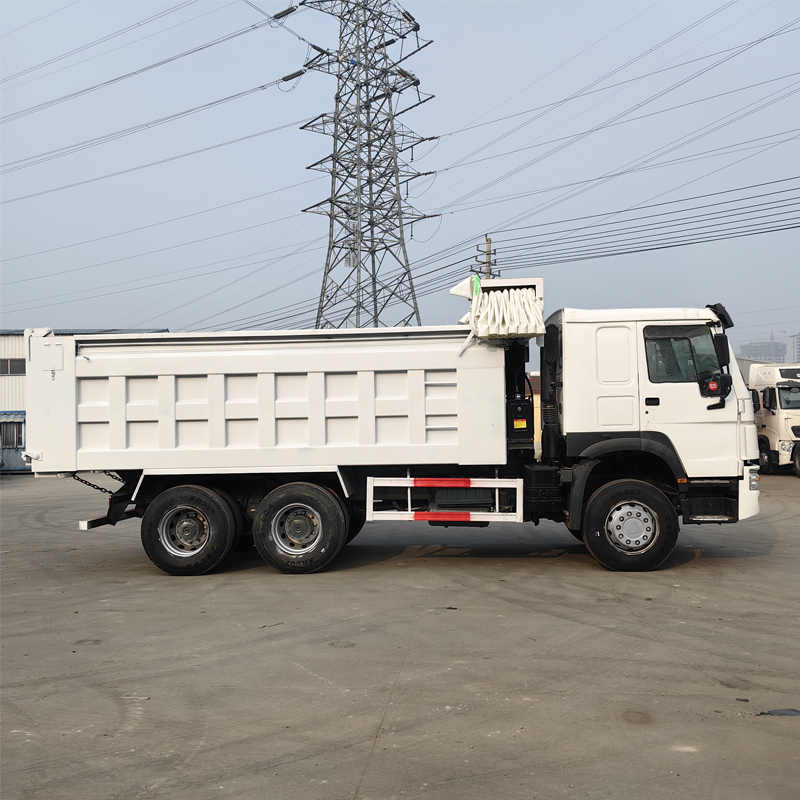

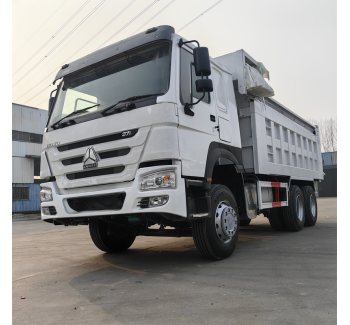

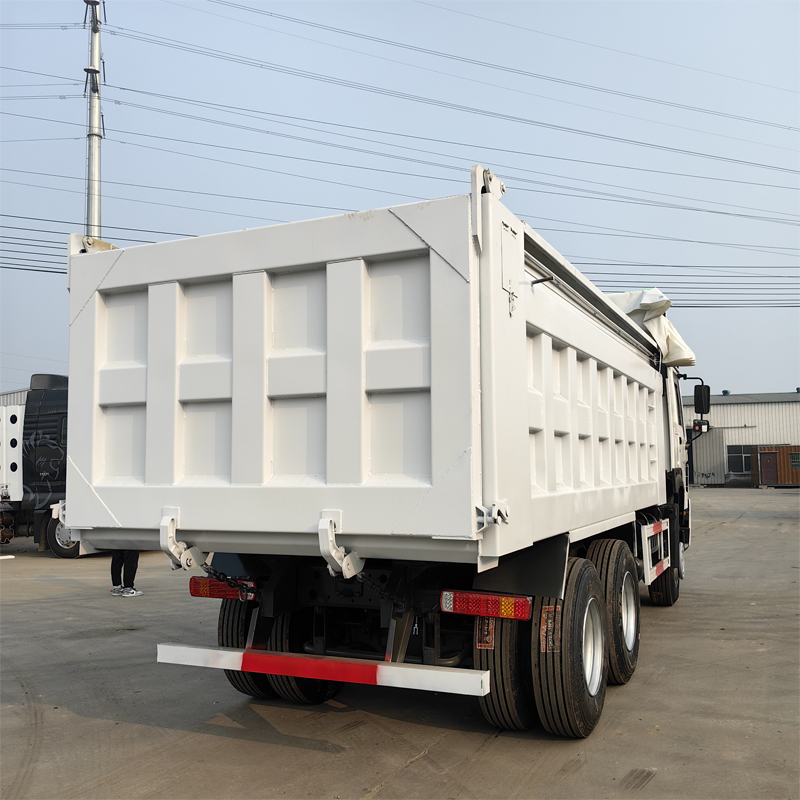

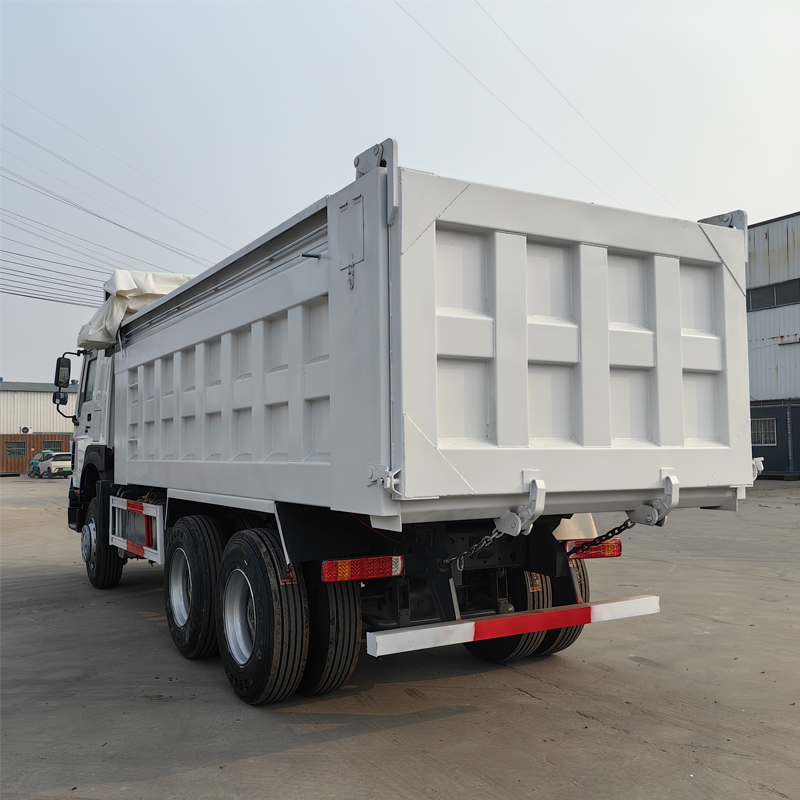

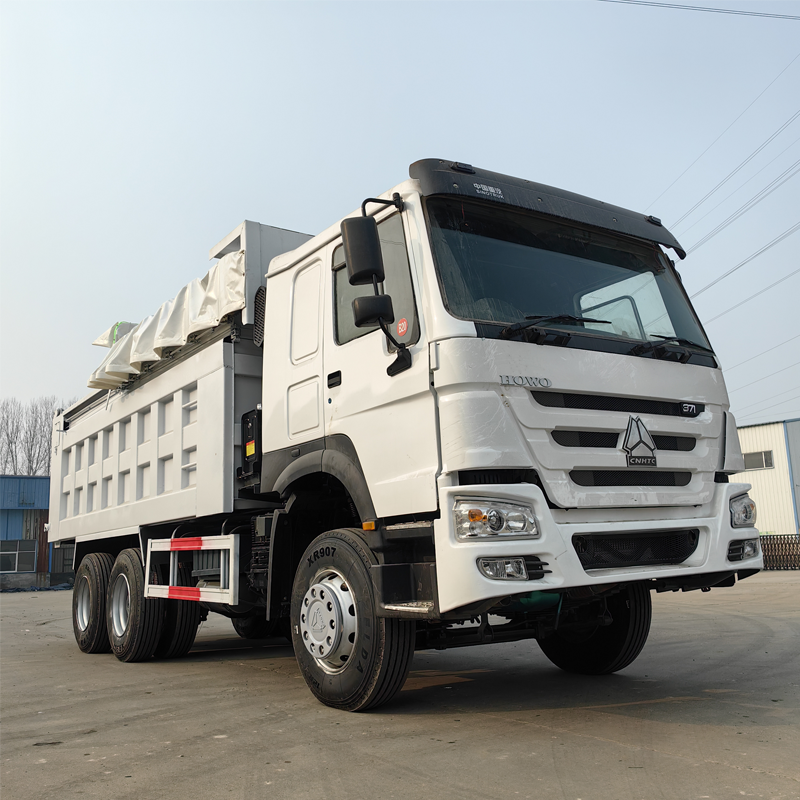

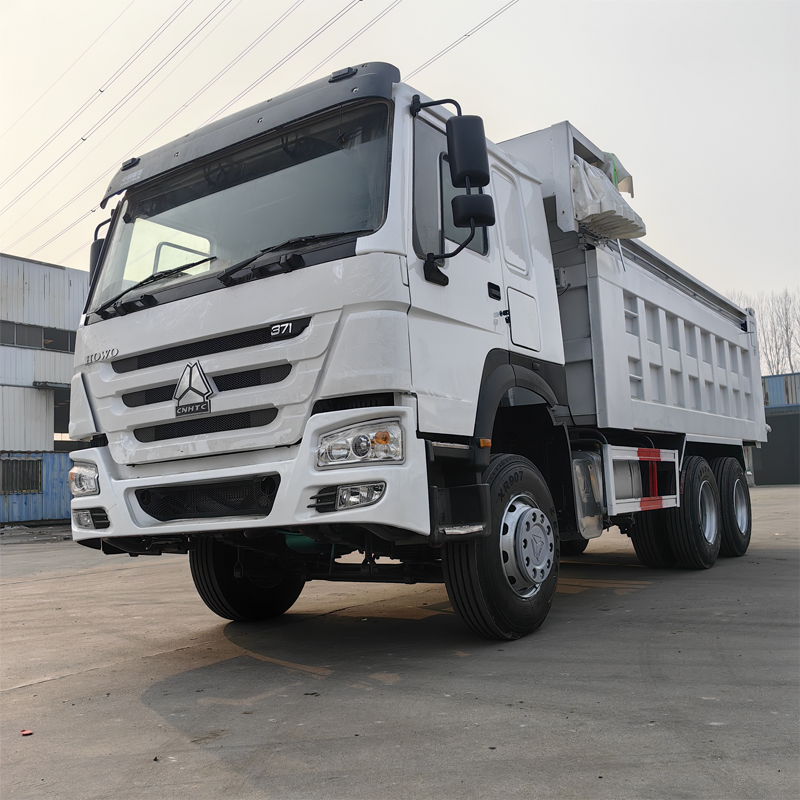

Truck Model | CVZZ3257N3647A (LHD) | ||||
Truck Brand | SINOTRUK –HOWO | ||||
Dimension(Lx W xH)(unloaded) | 8214x2496x3386 | ||||
Cargo body size (L*W*H, mm) | 5400x2300x1400 | ||||
Cargo body thickness(mm) | bottom:8mm, side:6mm, | ||||
Lift type of Carriage | Ventral lifting | ||||
Approaching angle/Departure angle(°) | 19/26 | ||||
Overhang(front/rear) (mm) | 1500/1739 | ||||
Wheel base (mm) | 3625+1350 | ||||
Max speed(km/h) | 75 | ||||
Curb weight(kg) | 12290 | ||||
Loading Weight(kg) | 30000 | ||||
Fuel tanker capacity | 300L with locking fuel cap | ||||
Fuel consumption(L/100km) | 32 | ||||
Clutch | Single-plate dry clutch Φ420mm | ||||
Engine Model ( technology, made in China) | Model | WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling | |||
Horse Power, max(kw/rpm) | 371HP,247/2200 | ||||
Emission Standard | EURO II | ||||
Transmission | Model | HW 19710,10 forwards and 2 reverse | |||
Brake system
| Service brake | Dual circuit compressed air brake | |||
Parking brake | spring energy, compressed air operating on rear wheels
| ||||
Auxiliary brake | Engine exhaust brake
| ||||
Steering system
| Model | ZF8098 hydraulic steering with power assistance | |||
Front axle | HF9 , Steering with double T-cross section beam Loading capacity:9000KG | ||||
Rear axle | HC16, Casting axle housing, central double reduction with differential locks between axles and wheels | ||||
Color | Optional | ||||
Tire | 12.00R20 11 pieces | ||||
Electrical system
| Operating voltage | 24V,negative grounded | |||
Starter | 24V,7.35KW | ||||
Alternator | 28V,1500W | ||||
Batteries | 2*12V.165Ah | ||||
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||
Cab | HW76 cab, (one sleeper,with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
