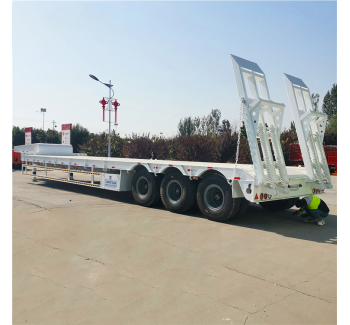

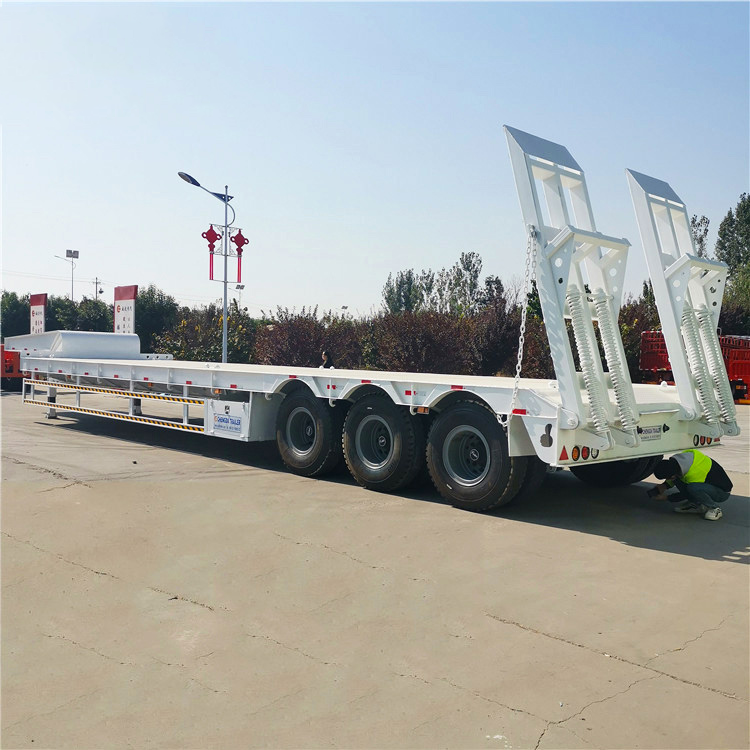

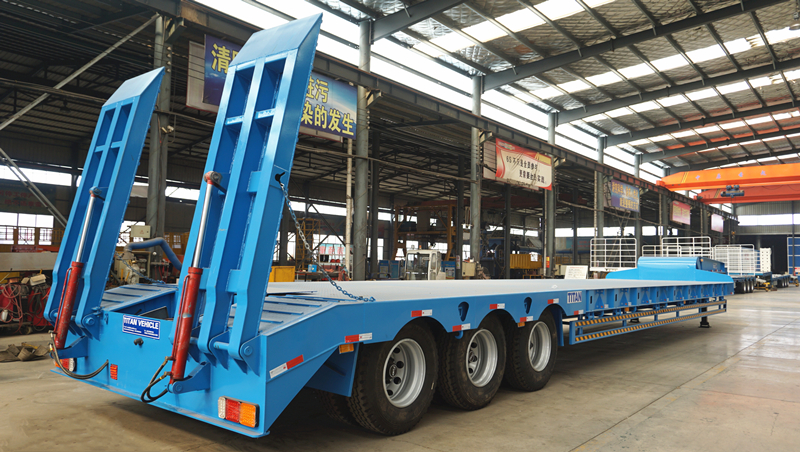

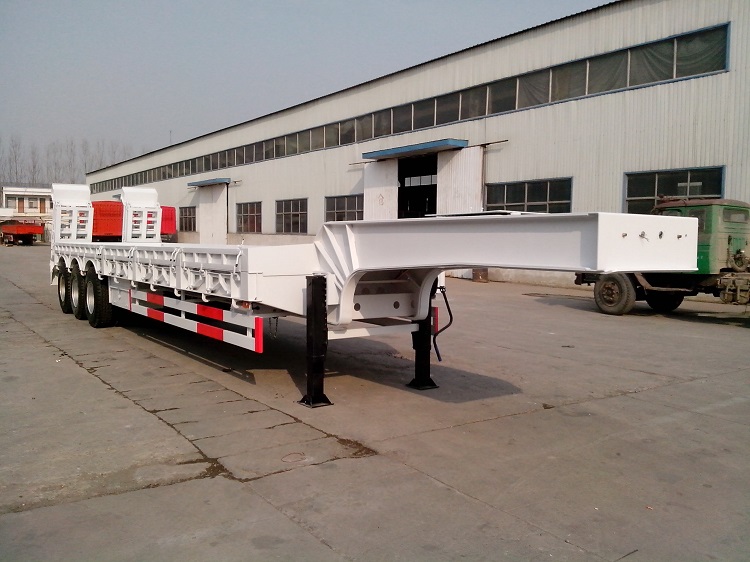

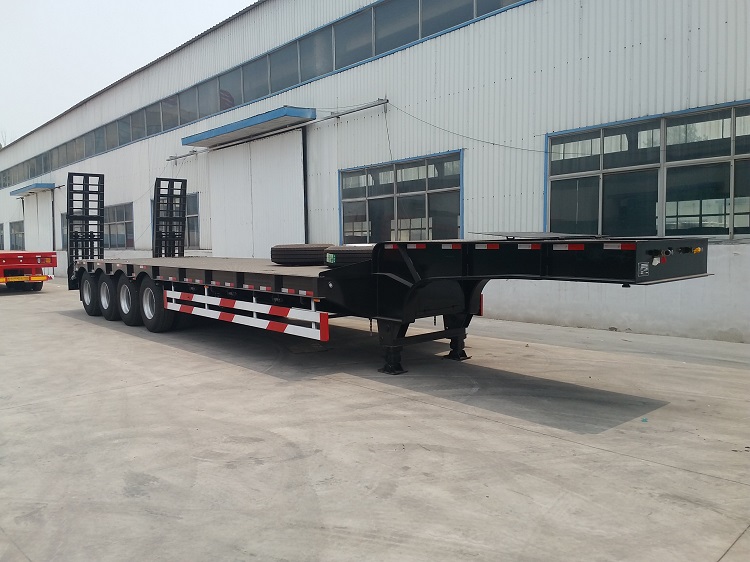

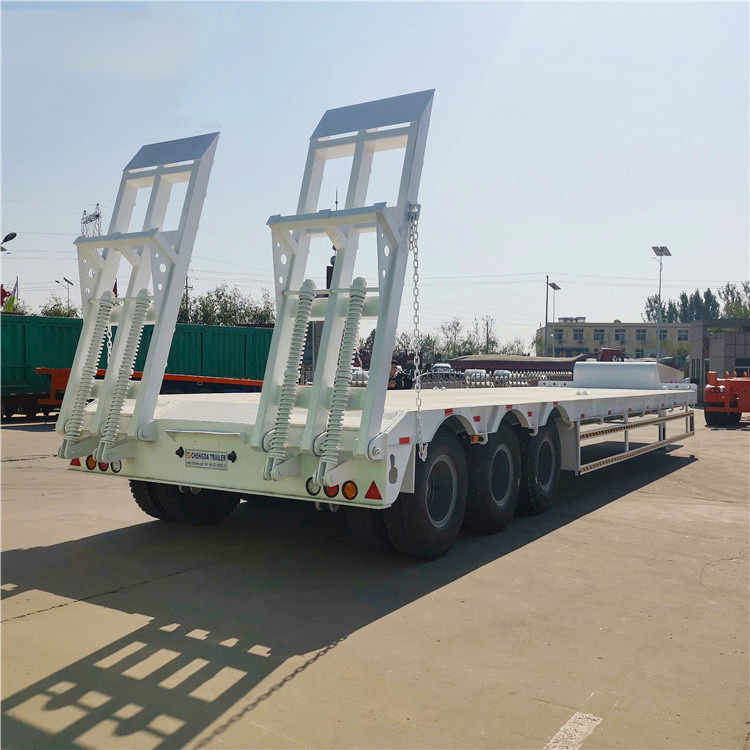

Low bed trailers are suitable for transporting heavy-duty vehicles such as tractors, special vehicles, rail vehicles, mining machinery, forestry machinery, and other heavily loaded goods. This kind of trailer has a low center of gravity, which provides greater ability to transport super-tall loads and to pass through height limit roads.
| Trailer Model | 3 Axle Low bed Semi Trailer |
| Dimension(Lx W x H)(mm) | 13000 x 3000 x 1650 |
| Curb Weight(KG) | 9000 |
| Loading Weight( KG) | 60000 |
| Axle Brand | 13TON Axle FUWA |
| Axle Number | 3 |
| Suspension system | Mechanical suspension |
| Ladder | mechanical |
| Chassis Frame | The height of the beam is 500mm, upper plate is 20mm, down plate is 20mm, middle plate is 14mm. Q345 |
| Tire Specification and quantity | 825R20 12units |
| Traction Pin | 50# or 90# |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Unit |
| Landing Leg | 28 Ton |
| Brake system | Dual Line braking system |
| Brake air chamber | 8 big air chambers |
| Electrical system | 24V,7 Pole plug |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
| Colour | According to clients' requirement |
| Packing | Polish with wax before shipping |

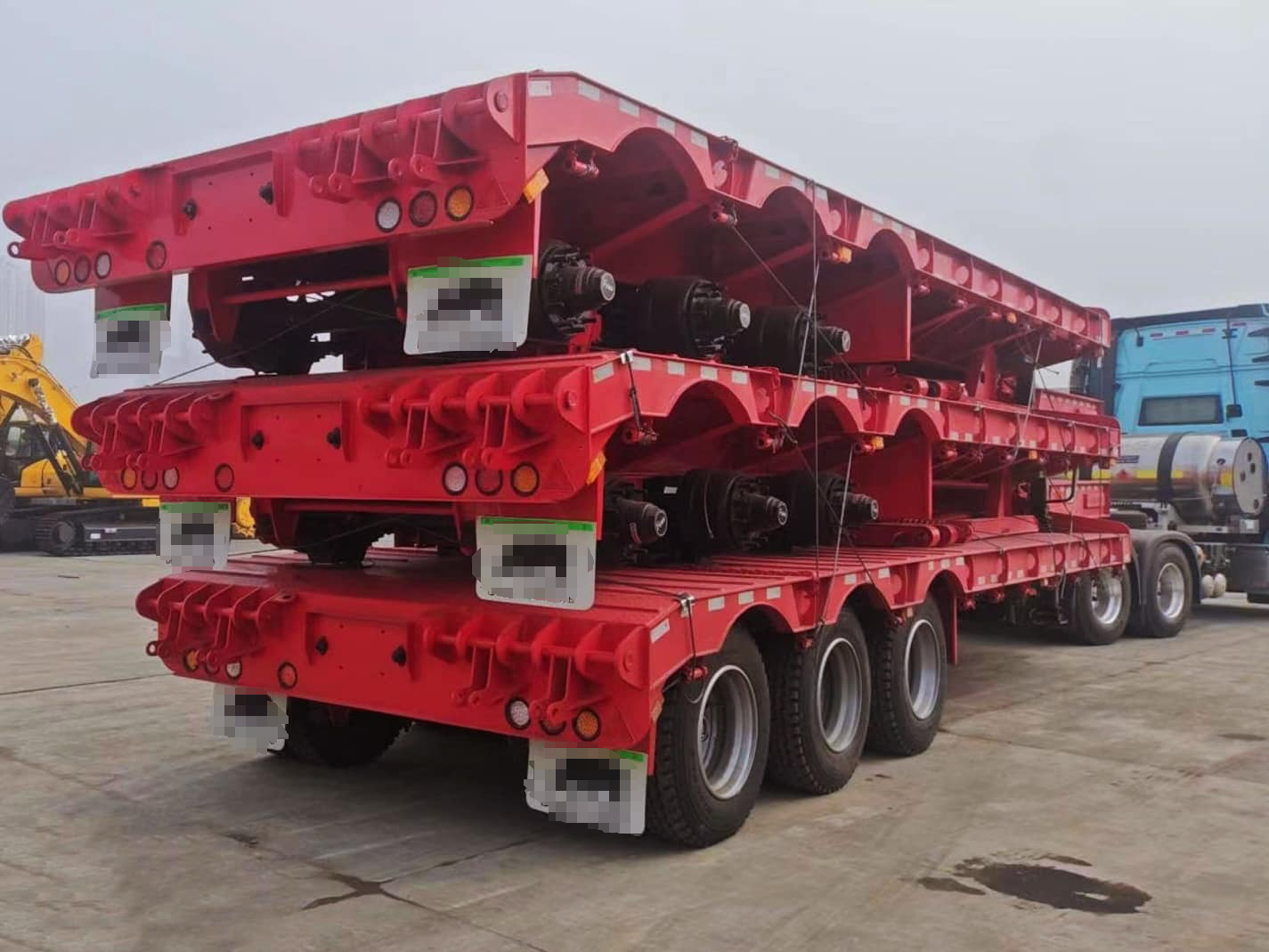

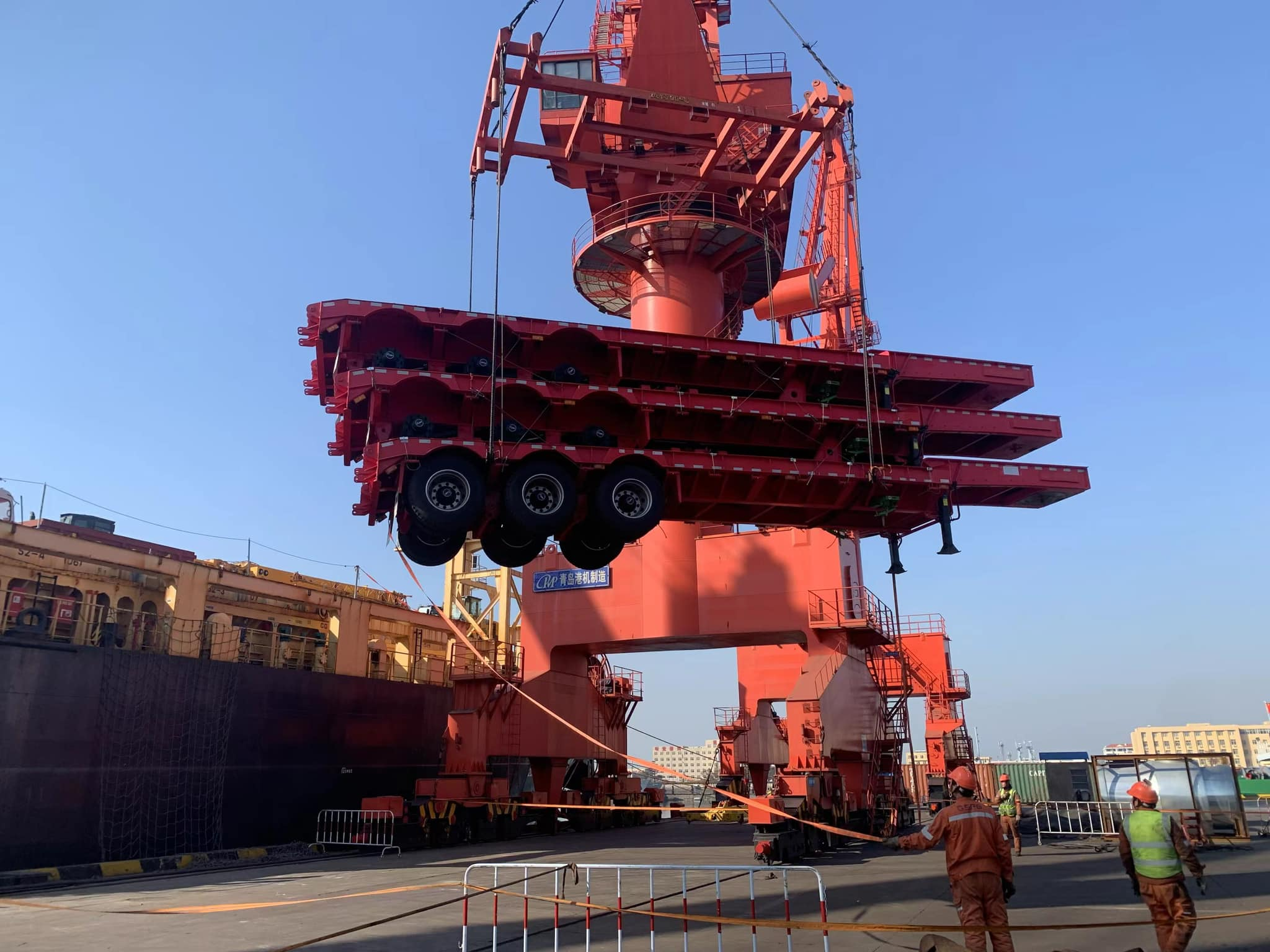

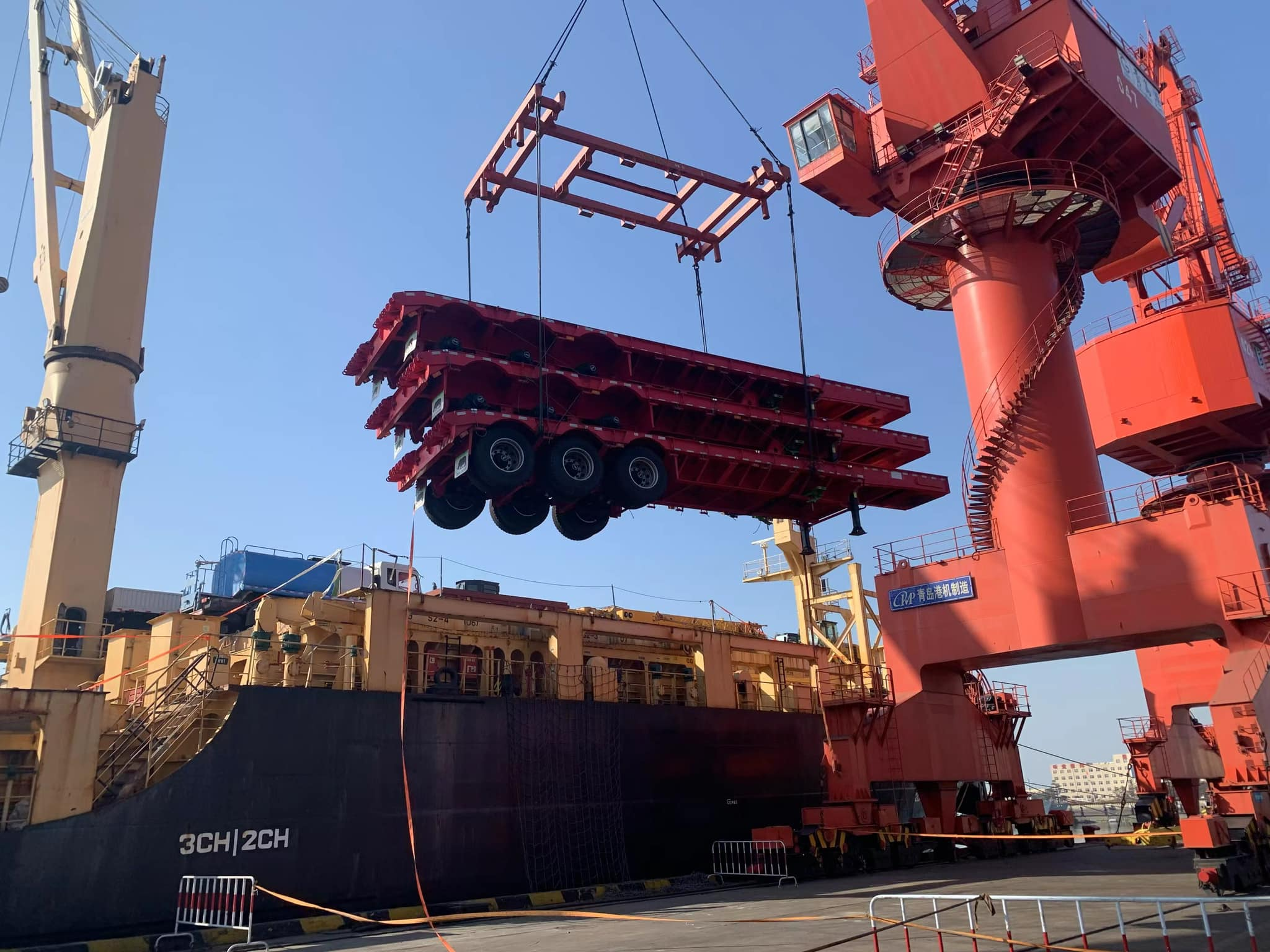

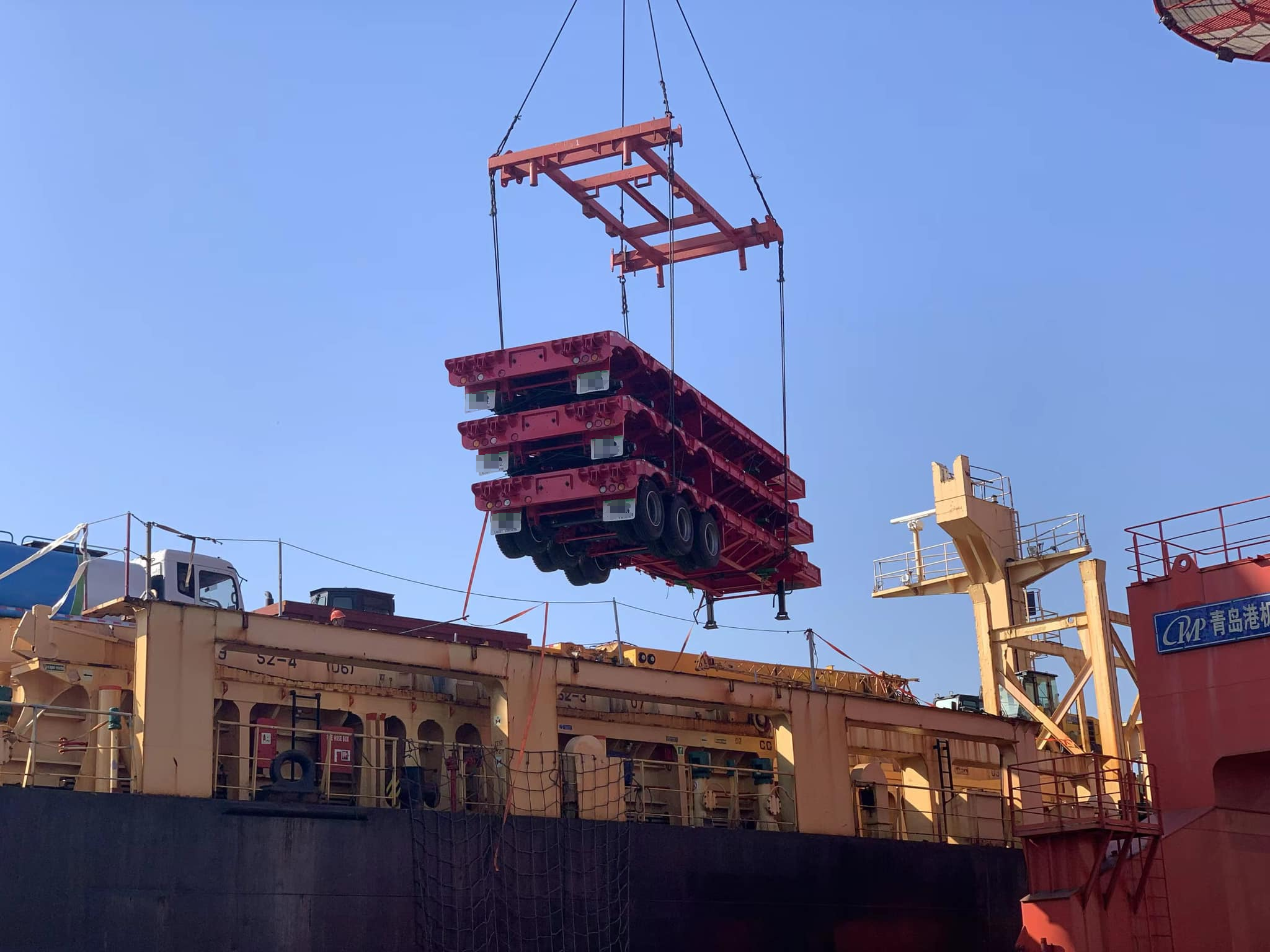

| Delivery way | Transfer to China port, and carry by bulk ship, the freight cost depends on the volume. |
